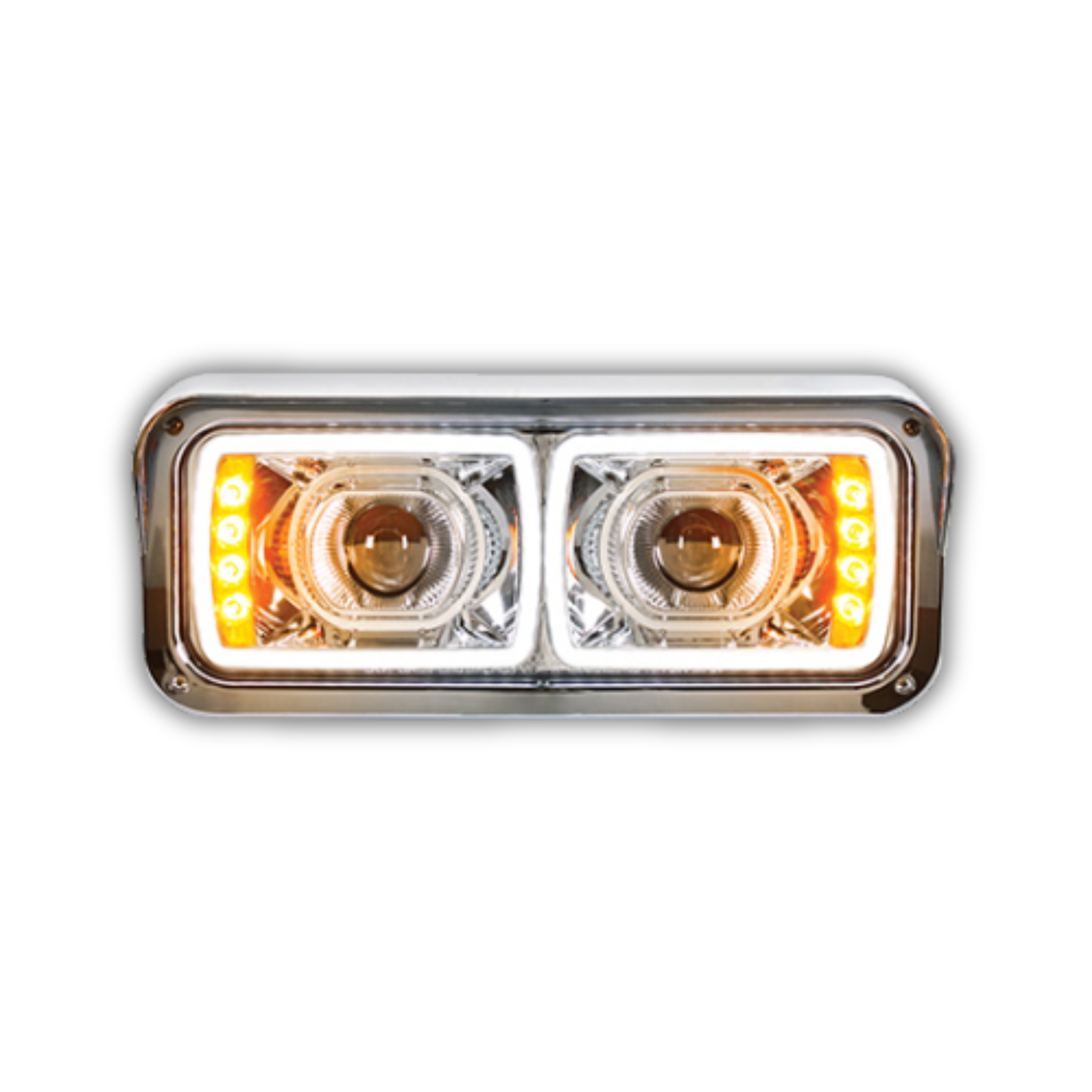

United Pacific – High Power LED Projection Headlight with LED Turn Signal & Position Light Bar

High Power LED Projection Headlight with LED Turn Signal & Position Light Bar

Upgrade your truck’s lighting with this High Power LED Projection Headlight featuring an integrated LED turn signal and position light bar. This all-LED assembly delivers powerful illumination, improved safety, and a modern custom look. Designed as a direct replacement for dual 4" x 6" headlight housings, installation is simple with a plug-and-play connector for low and high beams. Turn signal and position light wiring require an additional connection.

An all-new fender liner is included to protect the rear of the headlight from water, salt, and debris—helping extend component life and improve long-term durability.

Product Features

• Manufacturer: United Pacific
• Lighting Type: All LED projection headlight with LED turn signal & position bar
• Housing Finish: Chrome inner housing
• Includes: New protective fender liner
• Voltage: 12–24V DC
• Total Power Draw: 5.80 amps @ 12V DC
• Compliance: DOT/SAE, FMVSS 108
• Package Dimensions: 18" L x 11.5" W x 9.5" H
• Sold individually

Light Output

• Low Beam: 1,500 lumens, 1.5 amps @ 12V
• High Beam: 2,100 lumens, 2.3 amps @ 12V

Fitment

• Peterbilt 357 / 365 / 378 / 379 (OE dual 4" × 6" headlight housings)
• Kenworth T600 / T800 / W900 (fender-mounted headlight setup)
• Freightliner Classic
• Western Star 4800 / 4900 / 6900 series

Variants

• 31154 – Driver Side – Chrome Inner Housing
• 31155 - Passenger Side - Chrome Inner Housing

Performance and Fit

This headlight offers crisp, focused LED projection for improved down road visibility and a cleaner beam pattern. The integrated LED turn signal and position light bar enhance visibility to surrounding drivers. The chrome inner housing provides a polished, professional appearance, complementing both stock and custom exterior styling.

Installation

1. Remove the existing dual 4" × 6" headlight assemblies.
2. Install the new LED headlight using the OE mounting locations.
3. Plug the headlight into the factory wiring harness.
4. Connect the turn signal & position light wiring as required.
5. Test low beam, high beam, position light, and turn signal.

Why You Will Love It

• All-LED design for strong brightness and long life
• Chrome inner housing adds a sharp, clean look
• Direct-fit installation for many Peterbilt, Kenworth, Freightliner, and Western Star models
• Includes upgraded fender liner for rear protection
• DOT compliant and ready for highway use

Common Questions

• Does this plug into the OEM connector? High and low beams plug directly in; turn signal and position bar require additional wiring.
• Is this for the driver side or passenger side? This listing includes 31154 – Driver Side and 31155 - Passenger Side.
• Is this the complete assembly? Yes—includes headlight and protective rear fender liner.

⚠️ California Proposition 65 Warning:
This product may expose you to chemicals known to the State of California to cause cancer and reproductive harm.
