Grand General – Ultra Thin Hex Air Cleaner LED Light

Ultra Thin Hex Air Cleaner LED Light

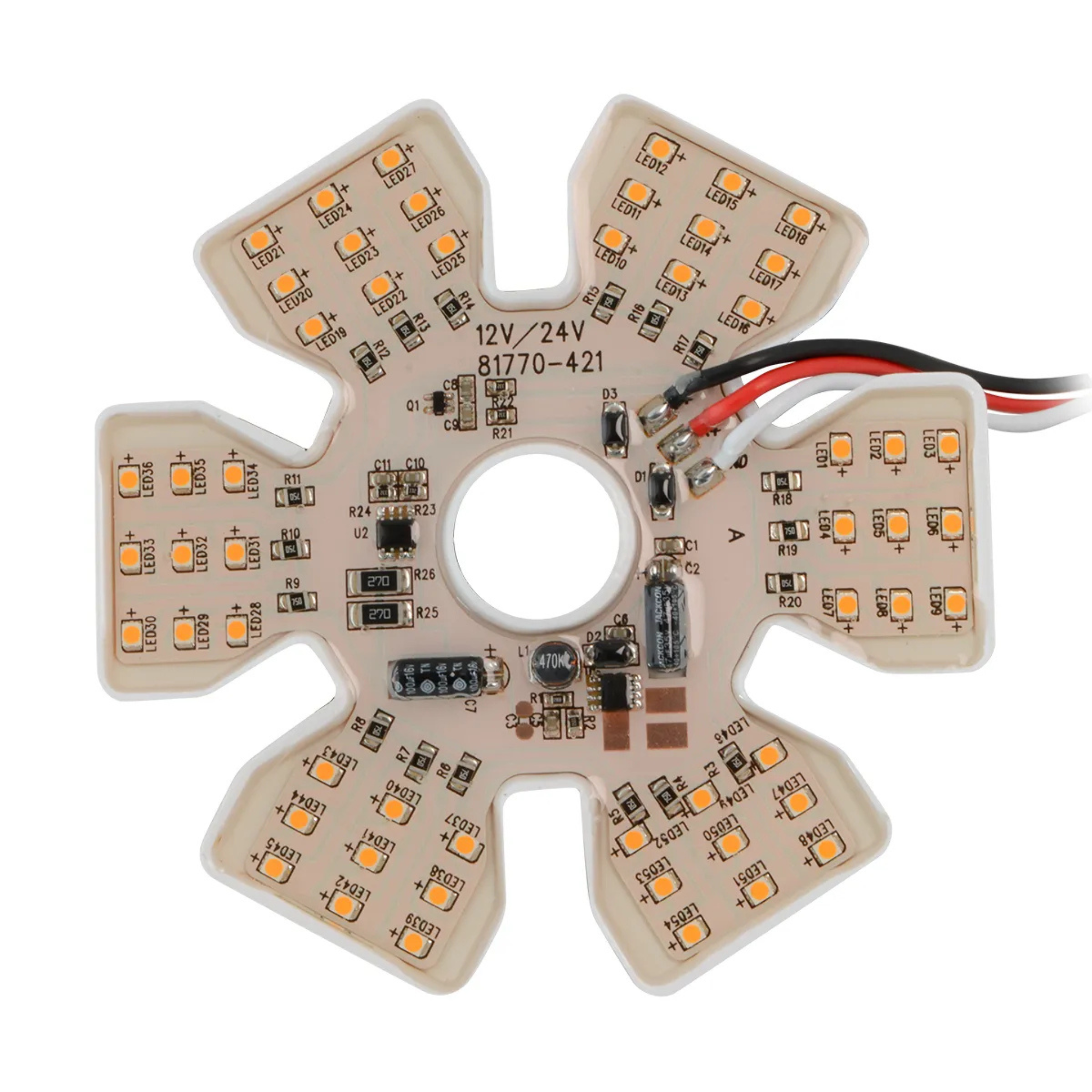

The Grand General Ultra Thin Hex Air Cleaner LED Light (81775 – 81778) delivers powerful illumination and a sleek, low-profile design for custom trucks and show rigs. Featuring 54 high-efficiency LEDs and a 12V dual-function circuit, this light offers both high and low brightness modes. Its sealed plastic base provides excellent protection against moisture and vibration, while the double-sided tape mount allows quick and secure installation on any clean surface.

• Manufacturer: Grand General

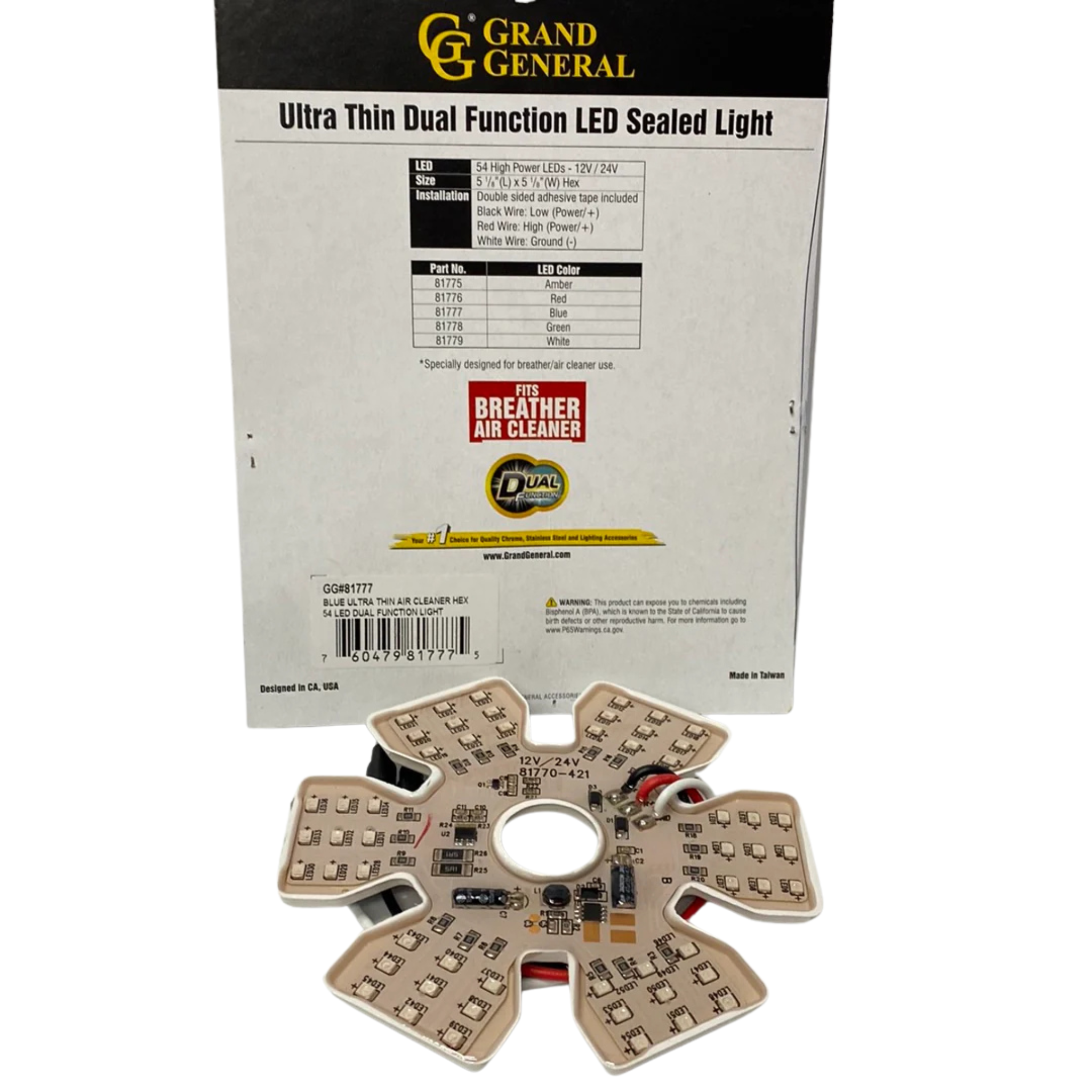

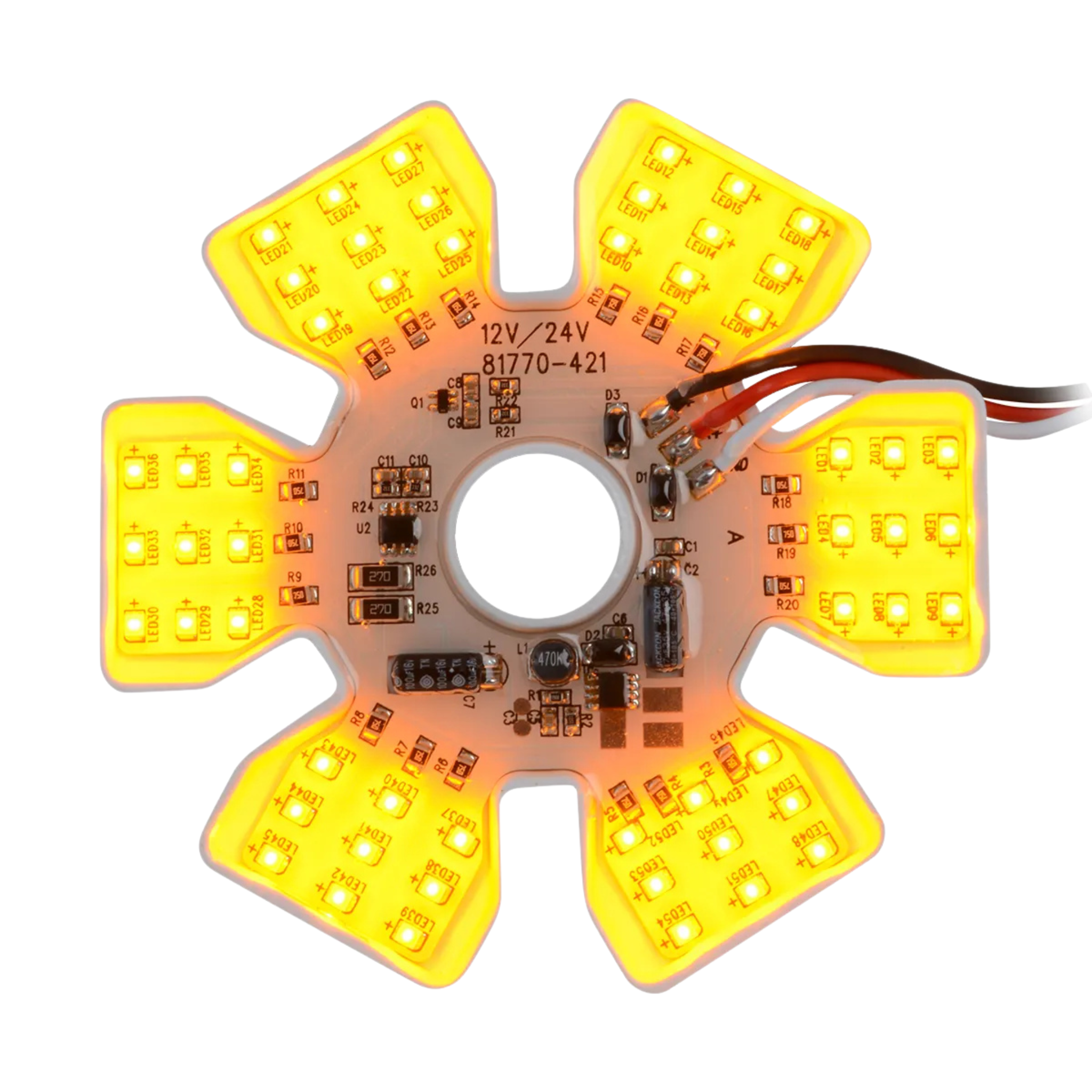

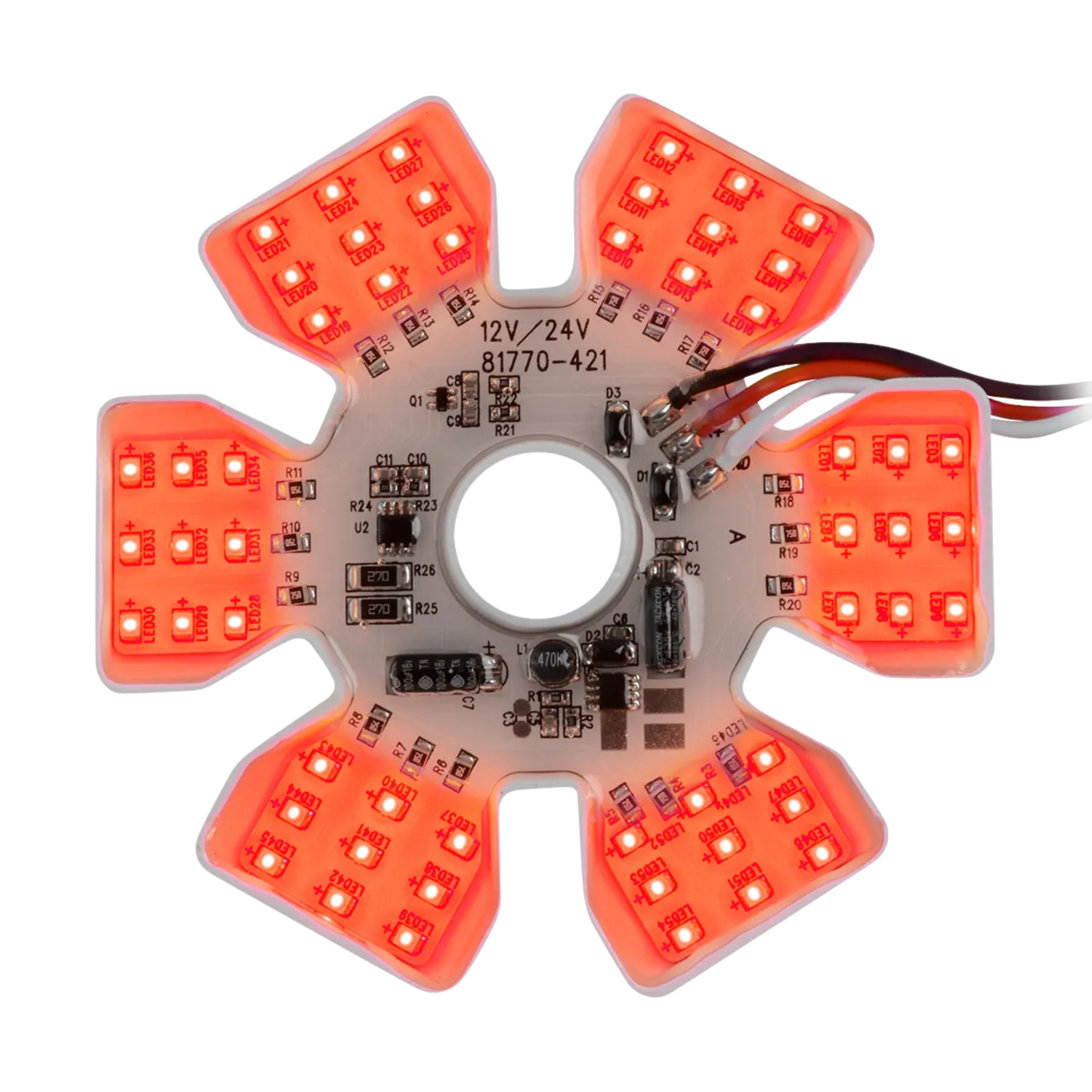

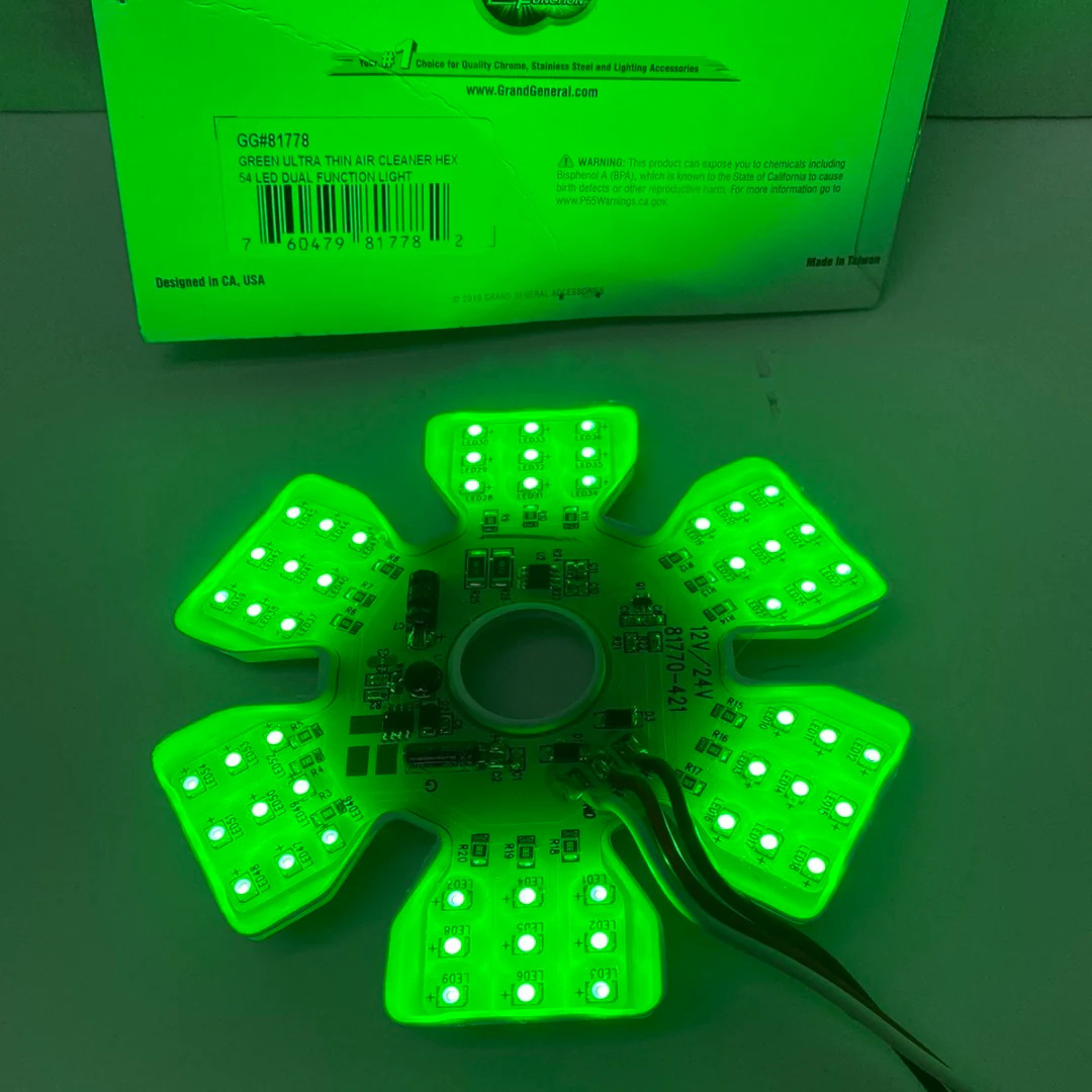

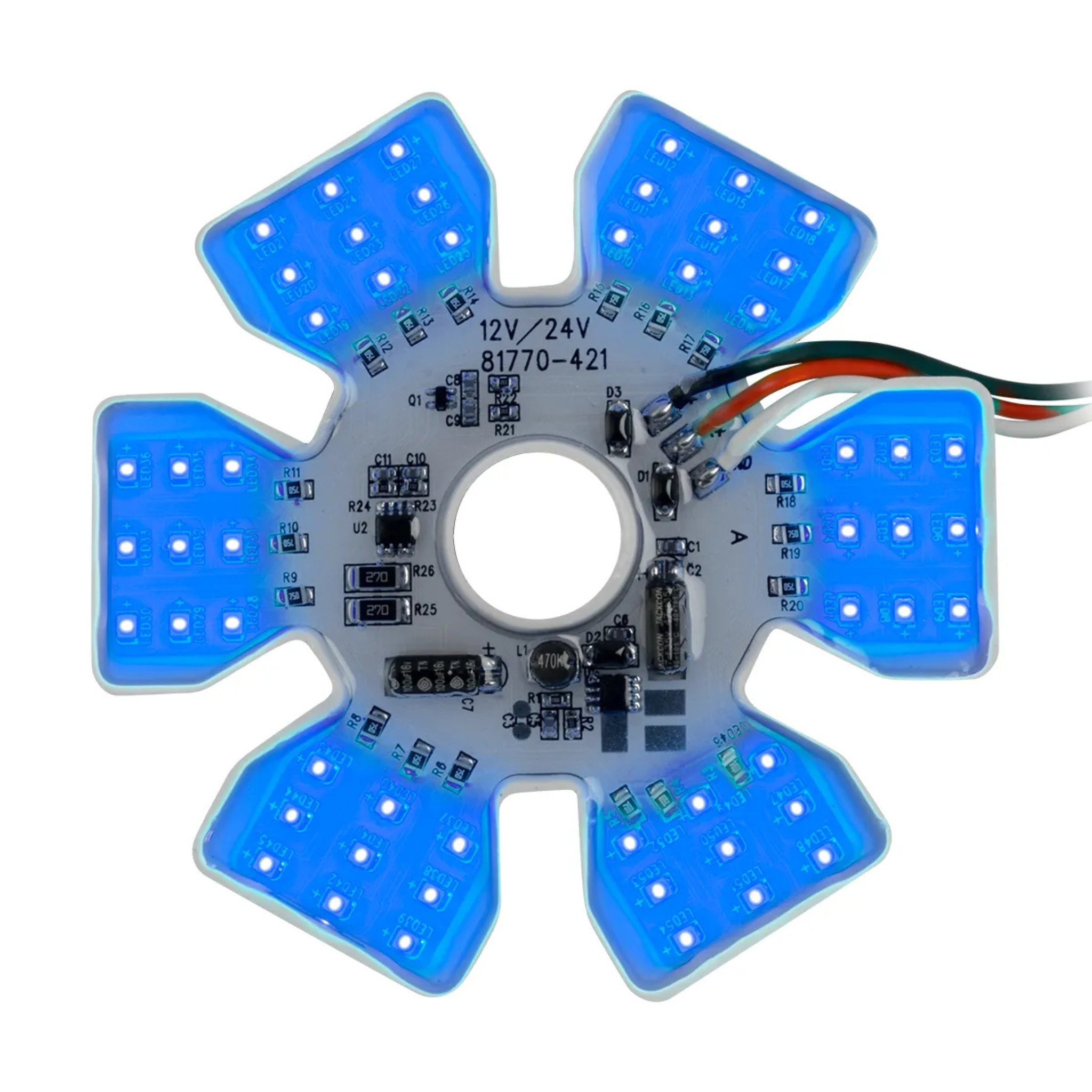

• Item Numbers & Colors:81775 – Amber | 81776 – Red | 81777 – Blue | 81778 – Green
• LED Count: 54 high-power LEDs
• Voltage: 12 V DC
• Functions: Dual-function operation (high / low)
• Material: Sealed plastic base with clear lens
• Mounting: Double-sided adhesive tape for easy surface mounting
• Connection: Hardwired with three 0.180 bullet plugs
• Wiring Details:Black Wire – Low (Power / +)Red Wire – High (Power / +)White Wire – Ground (–)
• Applications: Air cleaner LED accent light or auxiliary illumination for trucks

Performance & Fit

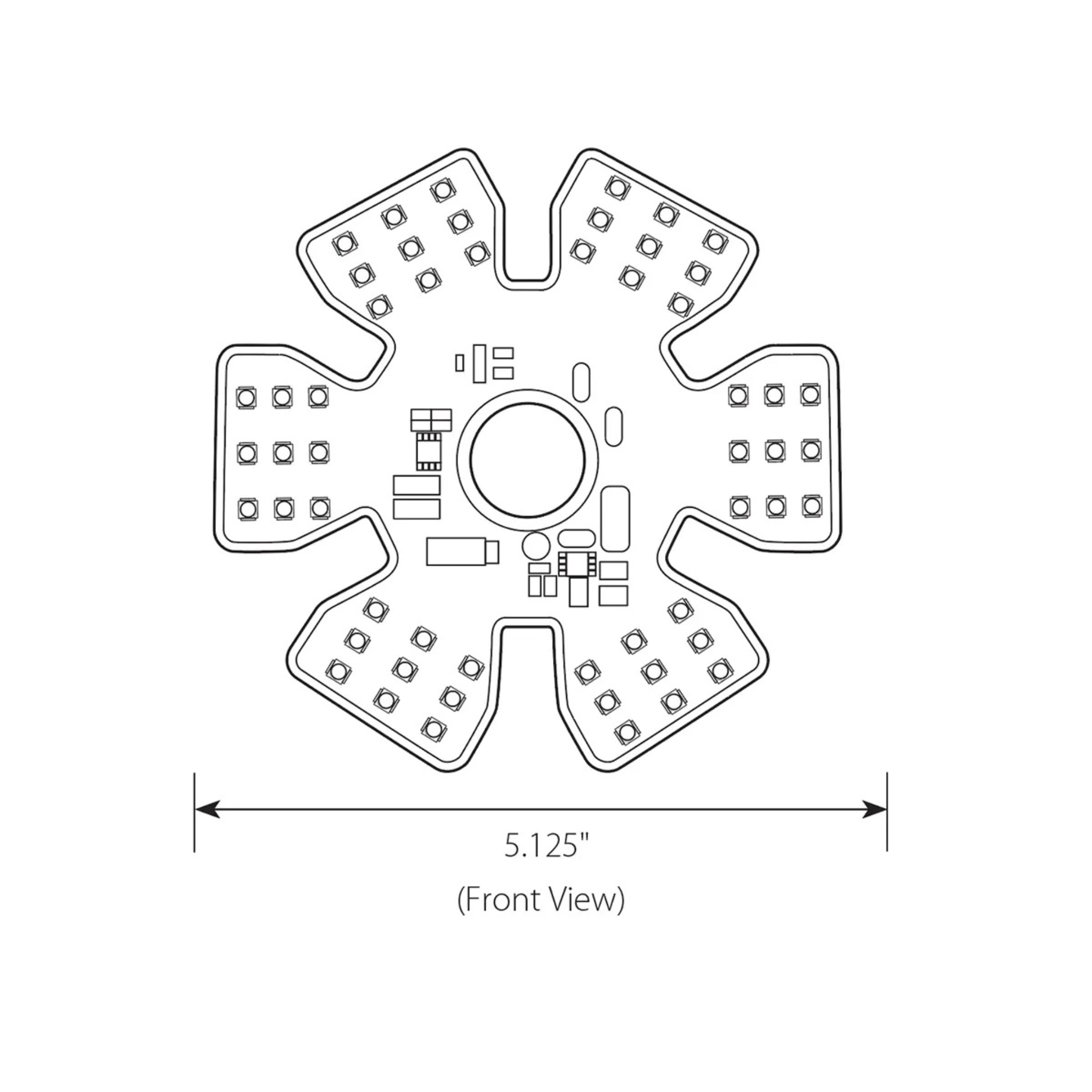

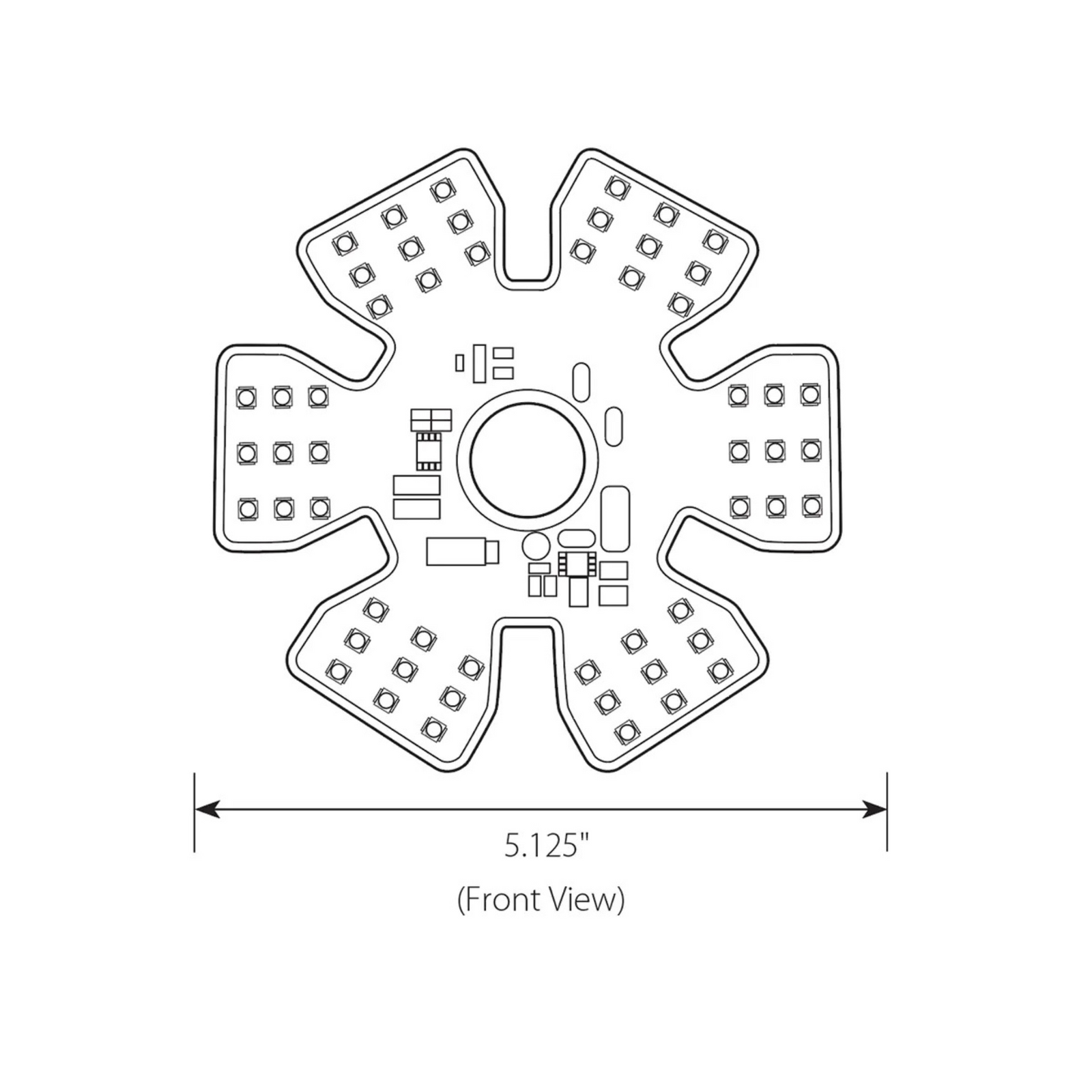

This ultra-thin LED light is designed for both function and flair. Its slim hexagonal profile hugs surfaces tightly, creating a clean and modern appearance. The sealed housing keeps dust and moisture out, while the dual-function circuit gives you both steady marker lighting and high-intensity illumination when needed.

Installation

1. Clean and dry the mounting surface thoroughly.
2. Peel off the backing from the double-sided tape.
3. Press the light firmly into place for a secure bond.
4. Connect wiring according to the included color chart (Black – Low, Red – High, White – Ground).
5. Test operation before completing final wiring connections.

Why You’ll Love It

• 54 powerful LEDs for bright, even illumination
• Dual-function lighting (marker and high intensity)
• Ultra-thin hex design for a sleek, custom fit
• Sealed housing protects against moisture and debris
• Quick stick-on installation with double-sided adhesive tape

Common Questions

• Is the light waterproof? Yes — the housing is sealed for moisture protection.
• Can it be wired for single brightness only? Yes — simply use one power wire (high or low) and ground.
• Does it require drilling? No — mounts easily using the included adhesive tape.

⚠️ California Proposition 65 Warning:This product can expose you to chemicals including nickel and lead compounds, known to the State of California to cause cancer and reproductive harm.For more information, visit www.P65Warnings.ca.gov.

Note: Available in Amber (81775), Red (81776), Blue (81777), and Green (81778). Dual-function 12V design with three-wire connection and easy stick-on mounting.
