United Pacific – 16 LED Rectangular Clearance / Marker Light with Reflex Lens

16 LED Rectangular Clearance / Marker Light with Reflex Lens

Improve visibility and safety with the United Pacific 38253 / 38254 – 16 LED Rectangular Clearance / Marker Light with Reflex Lens. Featuring a durable, water-resistant design and integrated reflex lens for added reflectivity, this light delivers reliable performance and long-lasting brightness on any 12V system. Available in both amber and red for front or rear applications.

Product Features

• Manufacturer: United Pacific
• Item Numbers: 38253 (Amber) / 38254 (Red)
• Lens Type: Reflex reflective design for enhanced visibility and safety
• LED Count: 16 high-output LEDs
• Lens Material: High-quality polycarbonate
• Sealing: Sonically sealed housing to prevent moisture intrusion
• Voltage: 12V DC system compatible
• Wiring: Hard-wired with two .180" bullet plugs (Black = Positive, White = Negative)

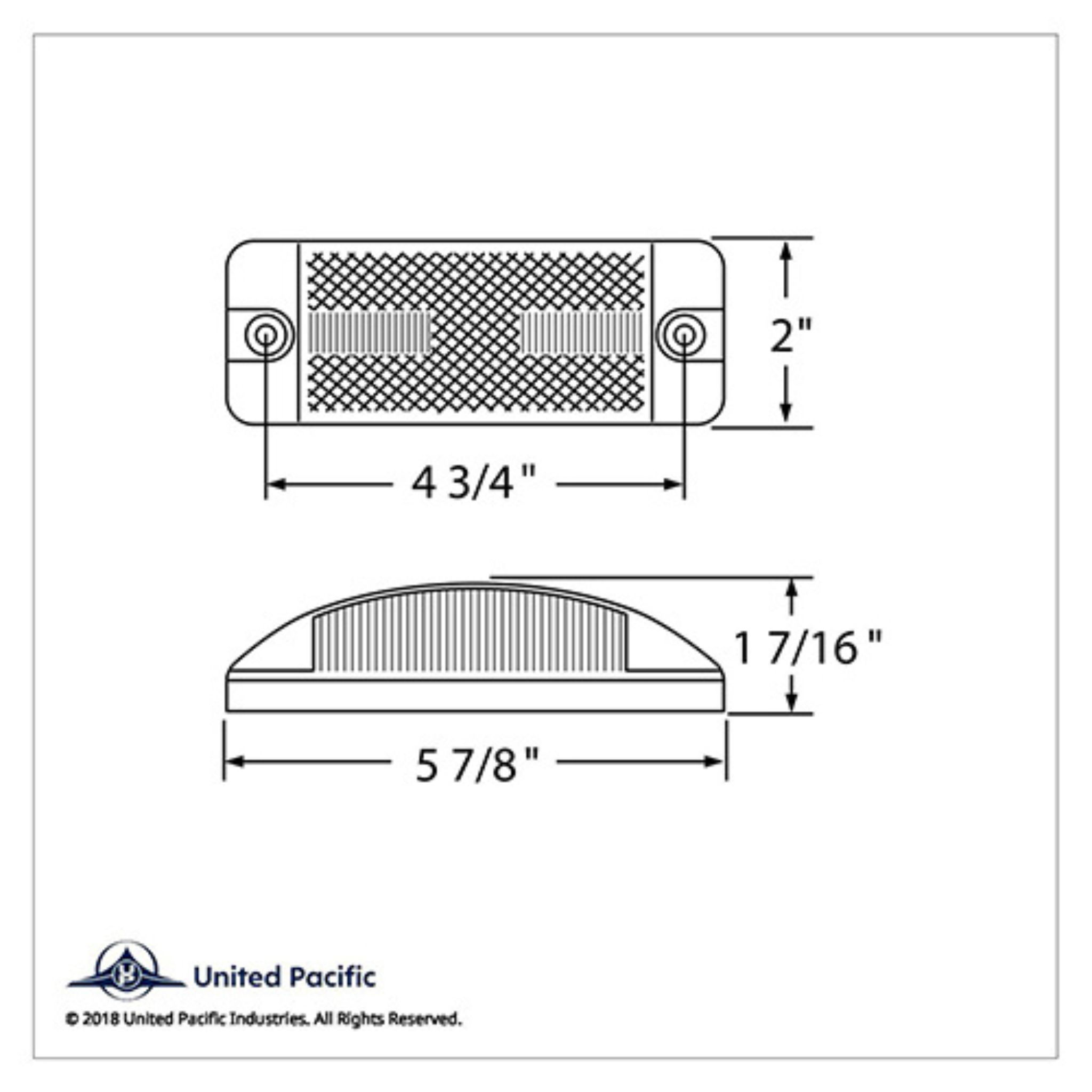

• Mounting Hole Spacing: 4-3/4" center-to-center
• Recommended Plug: Use with 2-pin male plug (Item #34210 or #34215, not included)
• Certifications: DOT / SAE P2, FMVSS 108 compliant
• IP Rating: IP67 water resistant

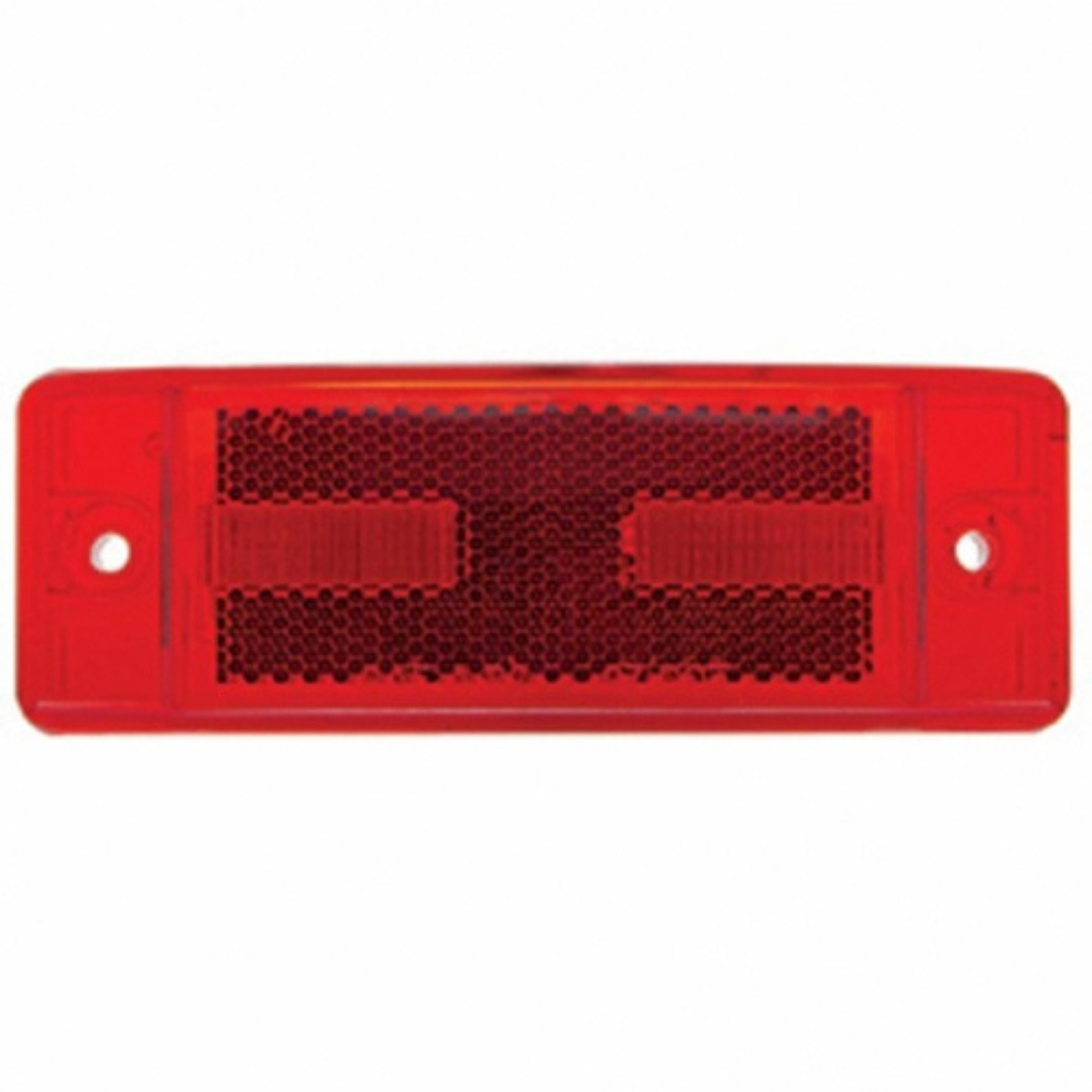

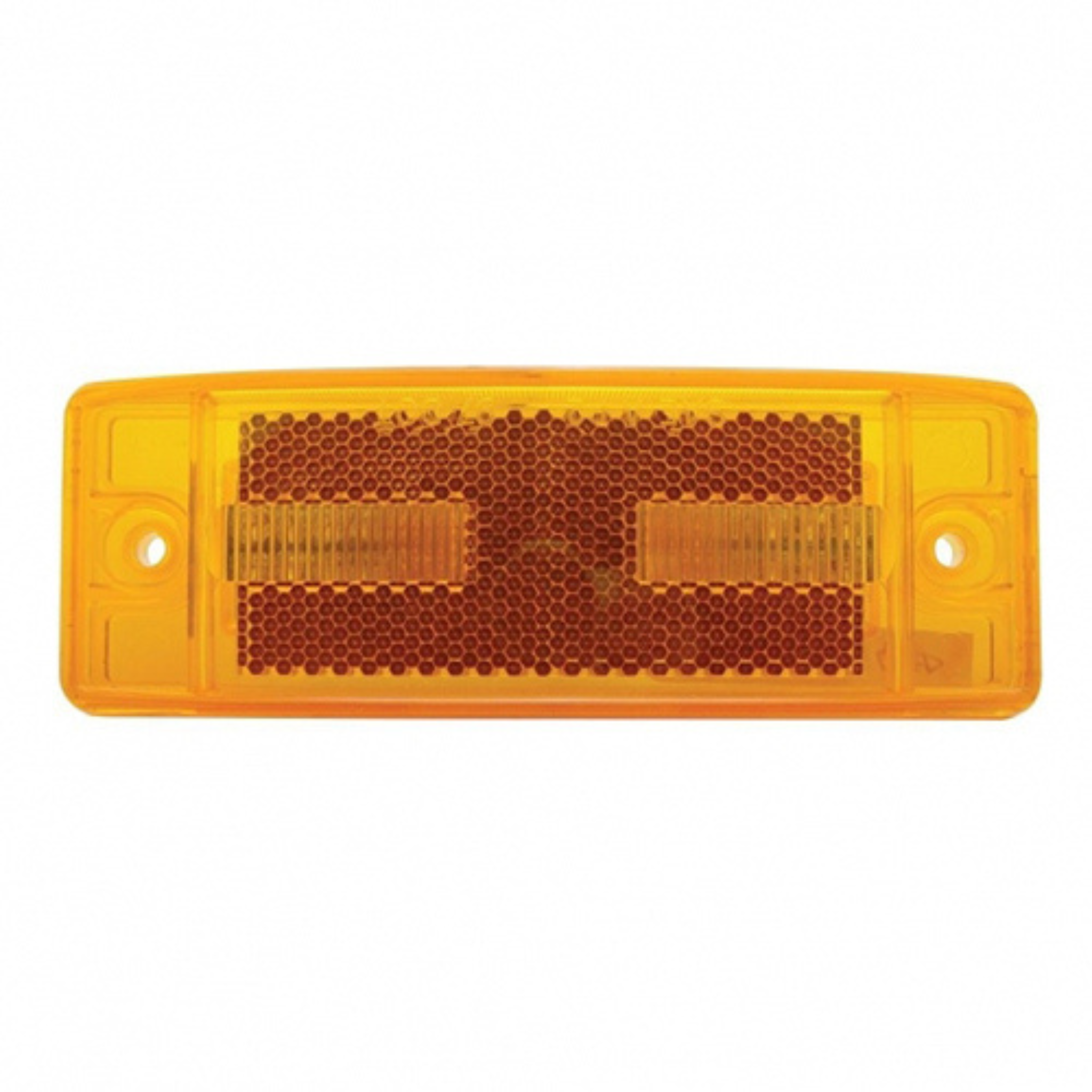

• Available Colors: Amber (38253) and Red (38254)
• Sold individually

Performance & Fit

Each light features an integrated reflex lens for both illumination and passive reflectivity — meaning better visibility even when the light is off. Designed with sealed polycarbonate housing and stainless terminals, these units resist corrosion, vibration, and water intrusion, ensuring consistent brightness and long-term reliability.

Installation

1. Connect wires using the provided .180" bullet plugs or compatible 2-pin connector.
2. Mount using standard 4-3/4" center-to-center holes.
3. Ensure polarity: Black = Positive (+), White = Negative (-).
4. Test illumination before final tightening.

Why You’ll Love It

• Bright, low-draw 16 LED design
• Reflex lens doubles as a reflector for passive safety
• Water-resistant and vibration-proof construction
• DOT/SAE compliant for legal road use
• Available in amber and red for front or rear mounting

Common Questions

• Is it submersible? Rated IP67 water-resistant for wash and weather exposure, not full submersion.
• Can I use it on trailers? Yes, fits most 12V trailer, truck, or bus applications.
• Does it include a connector? No, use with optional 2-pin male plug (Item #34210 or #34215).
• Is it DOT approved? Yes, fully DOT/SAE P2 and FMVSS 108 compliant.

⚠️ California Proposition 65 Warning:This product can expose you to chemicals including lead and nickel compounds, known to the State of California to cause cancer and reproductive harm.For more information, visit www.P65Warnings.ca.gov.

Note: Choose the correct color for your mounting location — amber for front clearance, red for rear marker applications.
