United Pacific – 8 LED Rectangular Light (Clearance/Marker) with Reflex Lens
8 LED Rectangular Light (Clearance/Marker) with Reflex Lens
The United Pacific 8 LED Rectangular Light with Reflex Lens combines illumination and reflectivity in one compact unit. Each light features eight high-intensity LEDs behind a reflex-style polycarbonate lens that reflects light even when the LEDs are off. Designed for durability, visibility, and long-term reliability on the road.

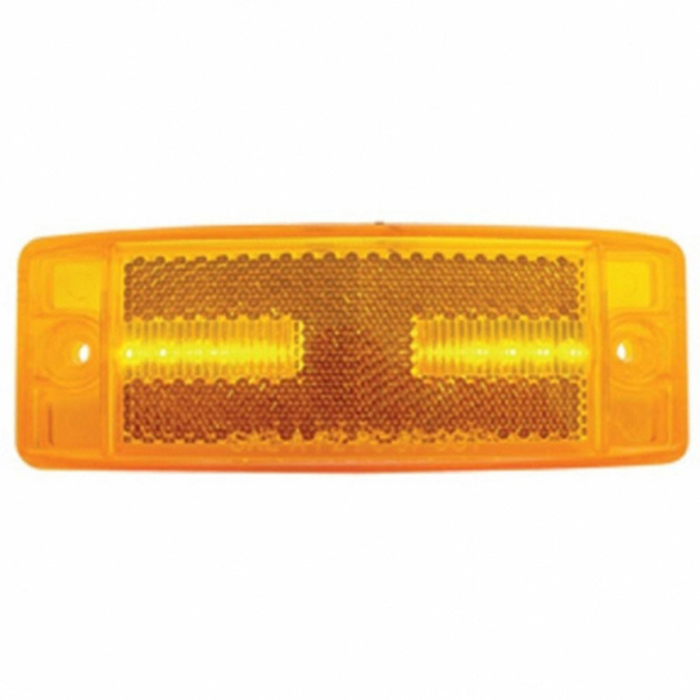

- 38258 – Amber LED / Amber Lens

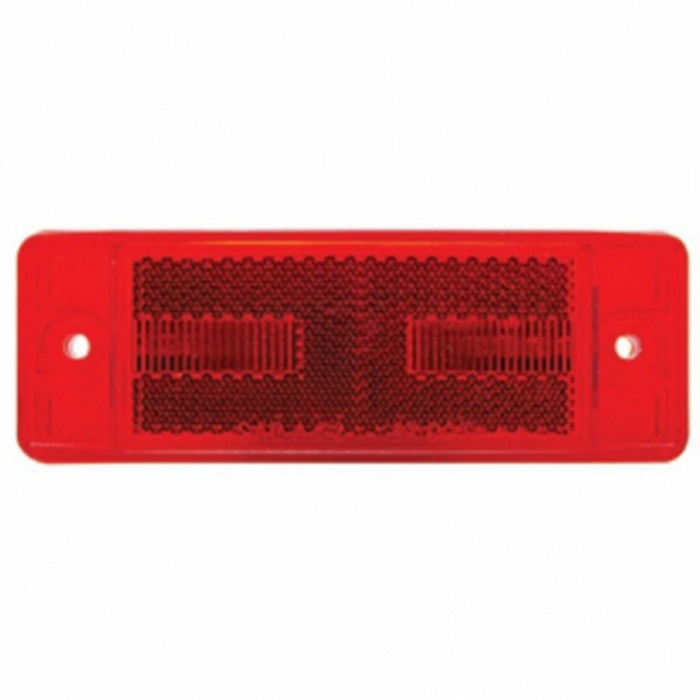

- 38259 – Red LED / Red Lens
Product Features
- Manufacturer: United Pacific
- Item Numbers: 38258 / 38259
- LED Count: 8 bright LEDs for maximum visibility
- Lens Type: Reflex reflective polycarbonate lens
- Construction: Epoxy-sealed circuit board for vibration and moisture resistance
- Voltage: 12 V DC
- Wiring: Hard-wired with two .180″ bullet terminals
- Polarity: White = Negative (–) | Black = Positive (+)
- Water Resistance: IP67 rated for dust and water protection
- Compliance: DOT/SAE FMVSS 108 approved
- Sold individually
Performance & Fit
The 8 LED design delivers bright, even light output with minimal power draw. The integrated reflex lens enhances side visibility and meets DOT reflectivity standards. The sealed lens and epoxy-coated electronics provide full protection against road debris and water exposure.
Installation
- Mount the light in the desired location on your truck or trailer.
- Connect the white wire to ground (–) and the black wire to power (+).
- Secure the housing using standard hardware or a mounting grommet if required.
- Test illumination and reflective function before final tightening.
Why You’ll Love It
- Dual-purpose reflex lens acts as both reflector and LED light
- Durable polycarbonate lens resists cracks and weather damage
- IP67 sealed electronics for water and dust resistance
- Energy-efficient 12 V LED circuit for long service life
- DOT/SAE FMVSS 108 compliant and road legal
Common Questions
- Can this light be used for clearance or marker applications? Yes – it’s designed for both functions.
- Is it waterproof? Yes – rated IP67 for dust and moisture protection.
- How do I connect it? Use the two .180″ bullet terminals for quick power and ground connections.
- Is it DOT approved? Yes – DOT/SAE FMVSS 108 compliant and road legal.
⚠️ California Proposition 65 Warning:
This product can expose you to chemicals including nickel and chromium compounds which are known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
Note: Choose Amber LED / Amber Lens (38258) or Red LED / Red Lens (38259). Sold individually. Confirm proper polarity and mount orientation before installation.
