Grand General – Pearl Series 3″ Double Face LED Light Amber/Red
Pearl Series 3″ Double Face LED Light

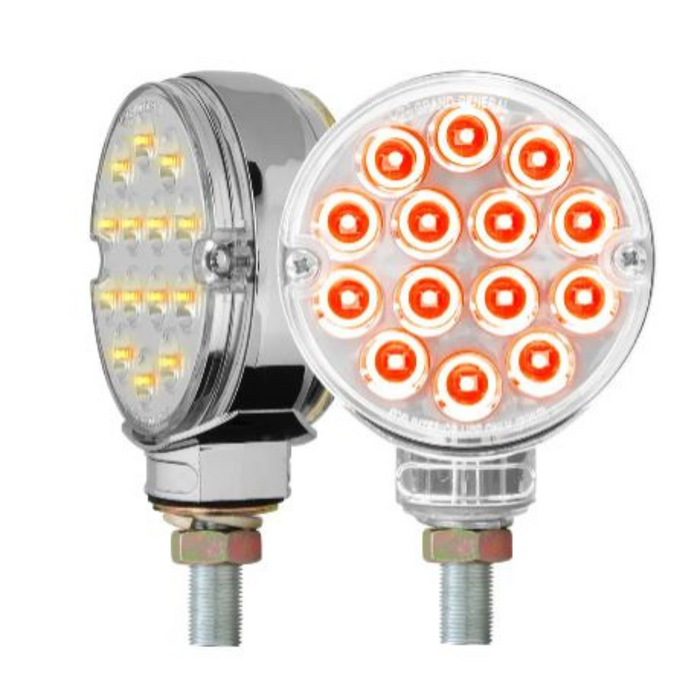

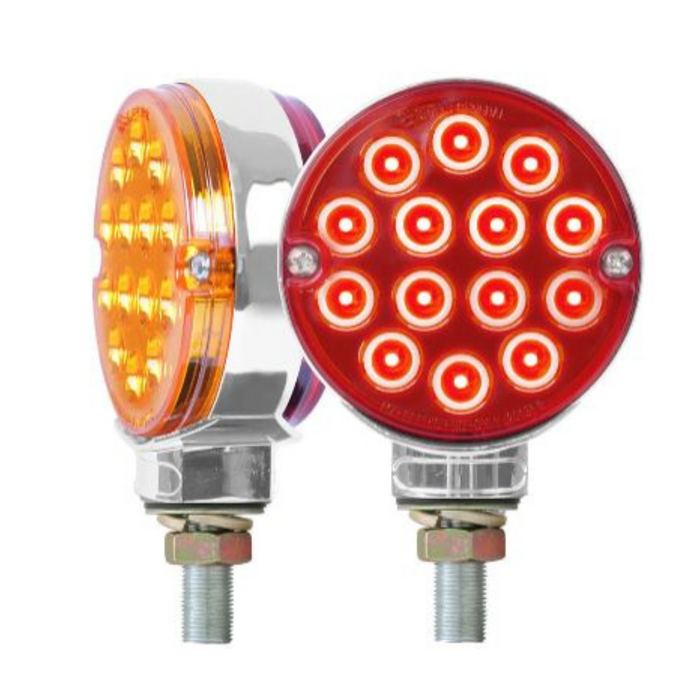

The Grand General Pearl Series 3″ Double Face LED Light (SKU 75190 / 75192) combines classic round styling with powerful LED illumination. Each side features 14 high-power LEDs sealed within a durable polycarbonate lens and chrome die-cast housing. Designed for 12V systems, this light provides dual-color illumination for front and rear signaling on trucks, trailers, and custom rigs.
- Manufacturer: Grand General
- Item Numbers / SKUs: 75190 (Amber/Red), 75192 (Clear Amber/Red)
- Voltage: 12V DC
- LED Count: 14 high-power LEDs per side

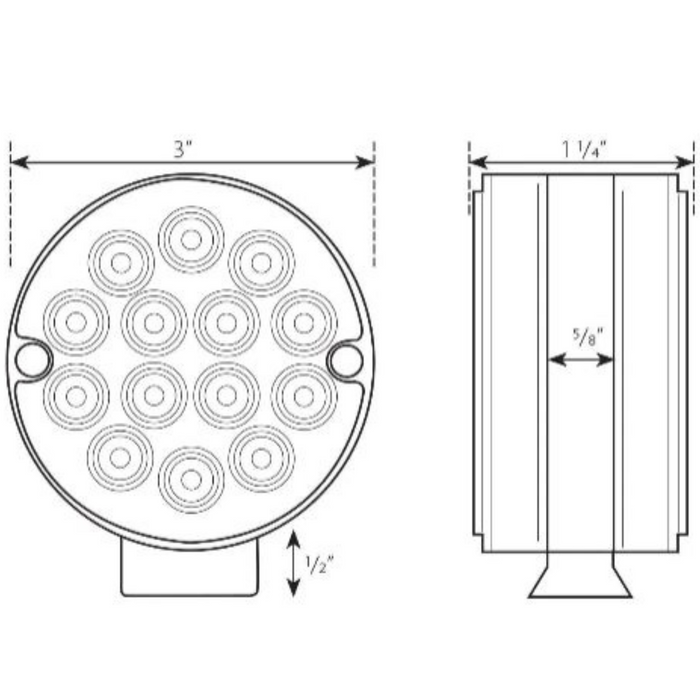

- Size: Light – 3″ Diameter × 1-1/4″ Height
- Stud Mount: 1/2″ Diameter × 1-1/2″ Length, 20-thread
- Material: Sealed polycarbonate lens and reflector with chrome die-cast housing
- Installation: 3-wire hardwired connection (ground, turn, and marker)
- Design: Double-face configuration for amber front and red rear visibility
Performance & Fit
This Pearl Series light offers high-output LEDs on both faces for maximum signal visibility. The sealed lens design protects against moisture and dust, while the chrome housing resists corrosion and adds a polished finish. Its compact 3″ body fits common stud-mount locations, making it ideal for turn and marker functions on both sides of the vehicle.
Installation
- Disconnect power before installation.
- Insert the 1/2″ stud through the mounting hole and secure with the provided nut.
- Connect the three wires: typically white (ground), black (marker), and red (turn signal).
- Test all lighting functions before final tightening.
Why You’ll Love It
- 14 high-power LEDs per side for bright, reliable visibility
- Amber front and red rear illumination for dual-function signaling
- Chrome die-cast housing provides durability and shine
- Fully sealed polycarbonate lens and reflector protect against moisture and debris
- Easy stud-mount installation for trucks and trailers
Color Options
- 75190: Amber front / Red rear
- 75192: Clear lens- Amber front / Red rear
Common Questions
- Is this light double-faced? Yes — both sides are illuminated for two-directional signaling.
- Can I wire this for turn and marker lights? Yes — it uses a standard 3-wire connection for marker and turn signal functions.
- Is it weatherproof? Yes — the sealed design protects the LEDs from water, dust, and vibration.
- Will it fit standard stud mounts? Yes — the 1/2″ stud fits most common light mounts.
⚠️ California Proposition 65 Warning:
This product can expose you to chemicals including lead and lead compounds, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
Note: Available in two color configurations: Amber/Red (75190) and Clear Amber/Red (75192). Each features 14 LEDs per side and chrome housing for enhanced visibility and style.
