Grand General – Pearl Series 3″ Double Face LED Light Amber/Amber
Pearl Series 3″ Double Face LED Light
The Grand General Pearl Series 3″ Double Face LED Light combines classic styling with modern LED performance. Each side features 14 high-power LEDs enclosed in a sealed polycarbonate lens with a chrome die-cast housing. Built for 12V systems, this double-faced design provides excellent visibility for marker and turn signal applications on trucks and trailers.
- Manufacturer: Grand General
- Item Numbers / SKUs: 75191 (Amber/Amber), 75193 (Clear/Amber)
- Voltage: 12V DC
- LED Count: 14 high-power LEDs per side

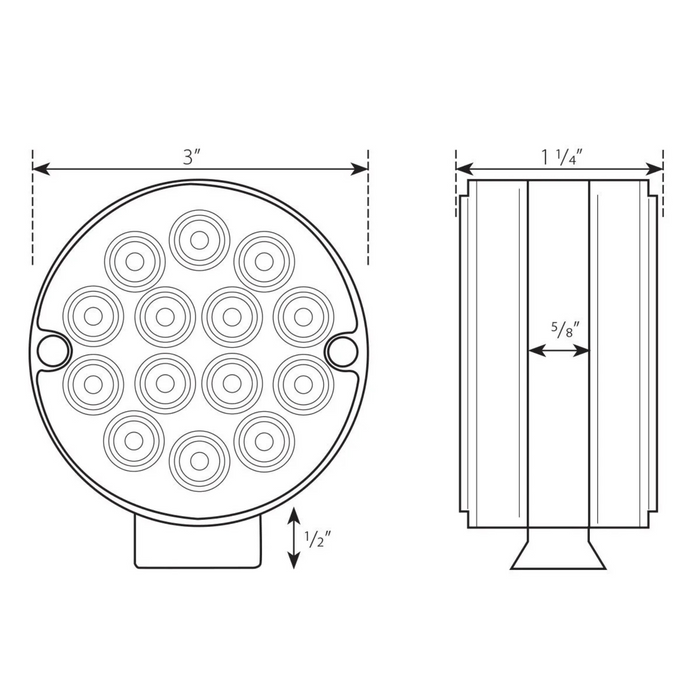

- Size: Light – 3″ Diameter × 1-1/4″ Height
- Stud Mount: 1/2″ Diameter × 1-1/2″ Length, 20-thread
- Material: Sealed polycarbonate lens and reflector with chrome die-cast housing
- Installation: 3-wire hardwired connection (ground, turn, and marker)
- Design: Double-faced round light for enhanced side and front visibility
Performance & Fit
This Pearl Series double-face light is engineered for durability and shine. The sealed lens and die-cast housing resist vibration, moisture, and corrosion. With 14 LEDs on each face, it delivers strong illumination for maximum visibility from multiple angles. Perfect for signal, marker, or custom lighting setups where dependable performance and a polished chrome finish are desired.
Installation
- Disconnect power before installation.
- Mount the light using the threaded 1/2″ stud and secure with a locking nut.
- Connect wires: typically white (ground), black (marker), and red (turn signal).
- Test all lighting functions before final tightening.
Why You’ll Love It
- Classic round design with modern LED brightness
- Double-face illumination improves visibility and safety
- Durable sealed polycarbonate lens and die-cast housing
- Easy stud-mount installation with 3-wire connection
- Chrome finish adds a professional polished look
Color Options

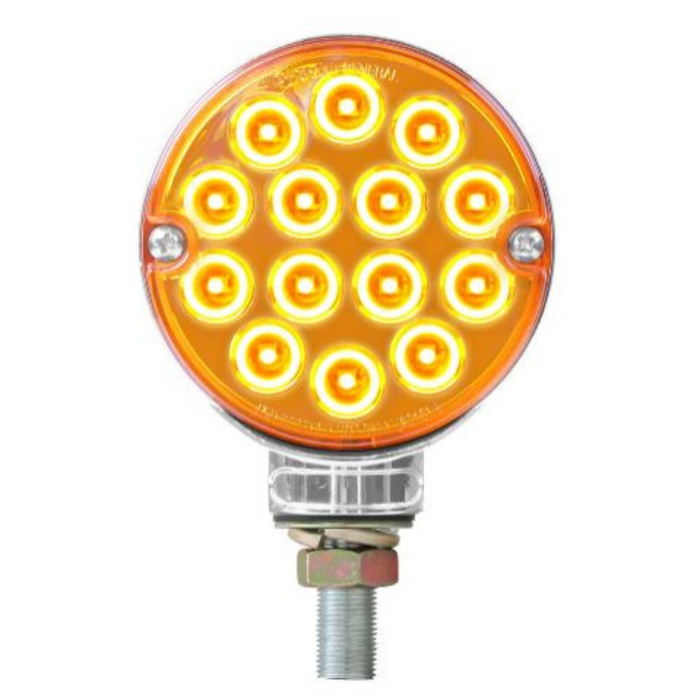

- 75191: Amber lens / Amber LEDs (both sides)

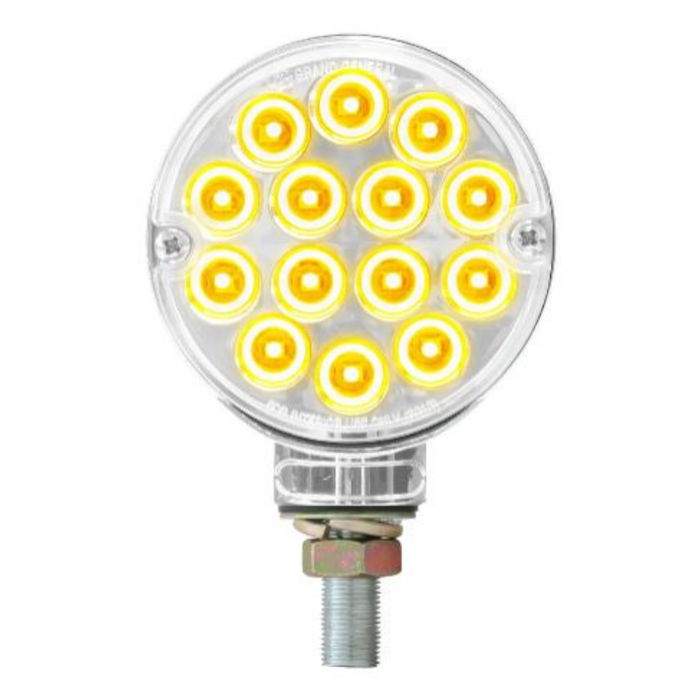

- 75193: Clear lens / Amber LEDs (both sides)
Common Questions
- Is this light double-sided? Yes — both faces contain 14 LEDs for high-visibility illumination.
- Can it be used as a turn signal? Yes — with its 3-wire connection, one circuit can be wired as a turn or marker function.
- Is it waterproof? Yes — the lens and housing are fully sealed for weather-resistant operation.
- Does it include the mounting hardware? The threaded stud and nut are built into the light assembly for easy installation.
⚠️ California Proposition 65 Warning:
This product can expose you to chemicals including lead and lead compounds, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
Note: Available in two versions: Amber/Amber (75191) or Clear/Amber (75193). Both feature 14 LEDs per side, 12V operation, and chrome die-cast housing.
