United Pacific – 14 LED 12″ Light Bar
14 LED 12″ Light Bar – 38947 / 38948
The United Pacific 14 LED 12″ Light Bar delivers bright, efficient lighting in a slim, durable design. Built for professional truck and trailer applications, it features epoxy-sealed 12 V DC electronics and a high-quality polycarbonate lens for long-term reliability in all weather conditions.
Product Features
- Manufacturer: United Pacific
- Item Numbers: 38947 / 38948
- Light Type: 14 LED bar light for stop, turn & tail or signal use
- Lens: Injection-molded polycarbonate lens sealed to housing for moisture protection
- Voltage: 12 V DC solid-state circuit board for efficient operation
- Housing: Durable sealed unit with epoxy coating

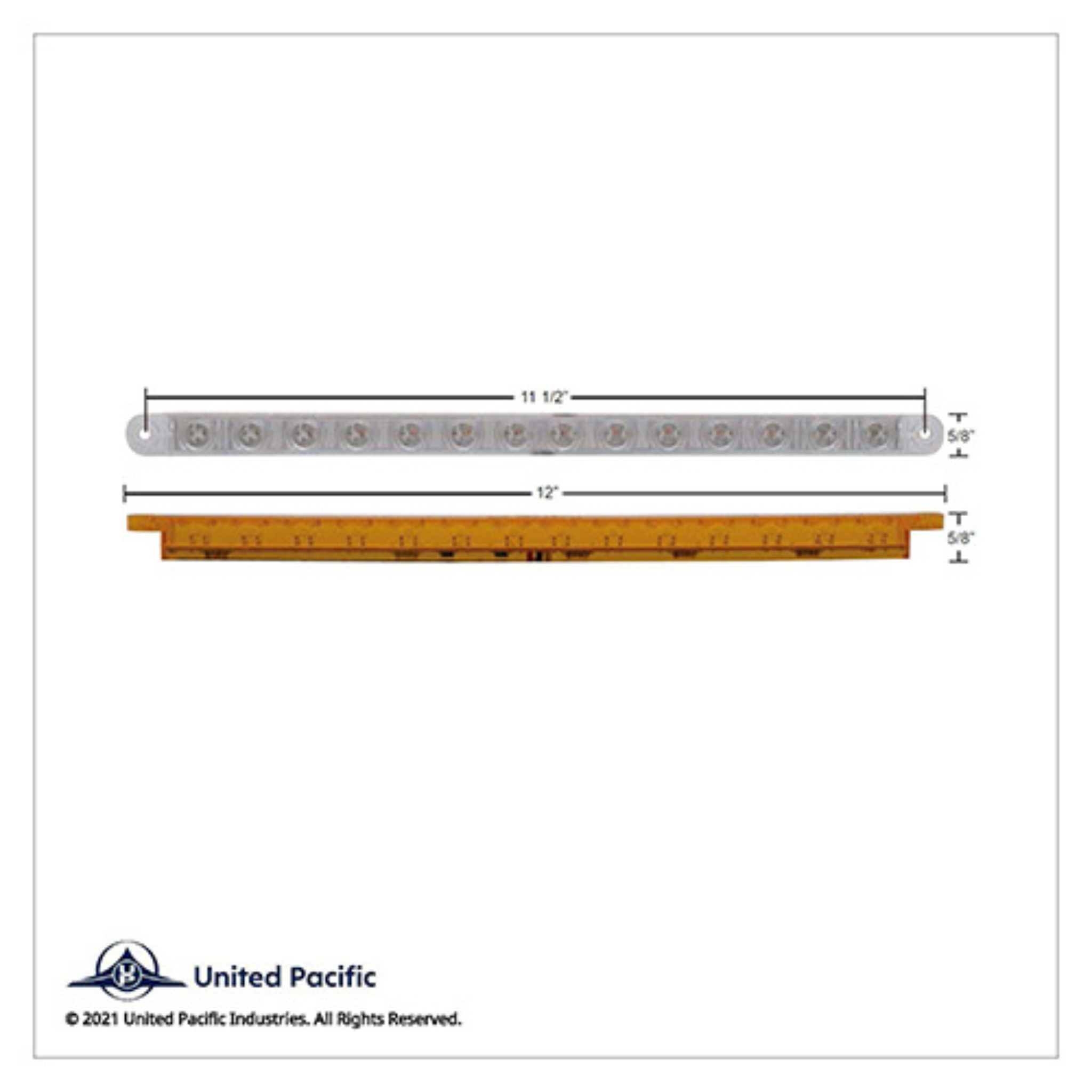

- Mounting Holes: Approx. 11-7/16″ apart
- Wiring: 3 hardwired leads – White (Ground), Black (Low), Red (High)
- Compliance: DOT/SAE, FMVSS 108 approved
- Water Resistance: Fully sealed and weatherproof
- Sold individually
Available Options

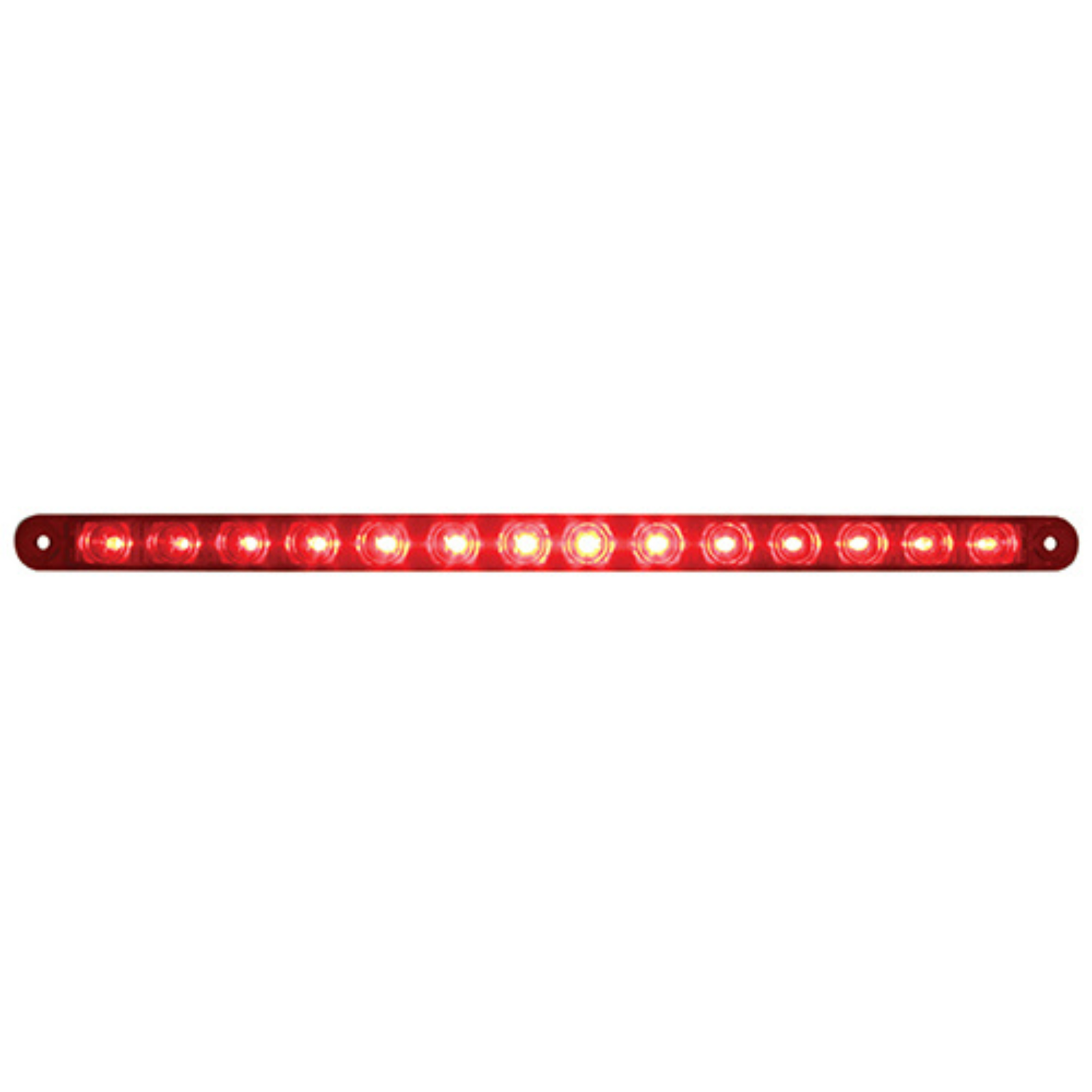

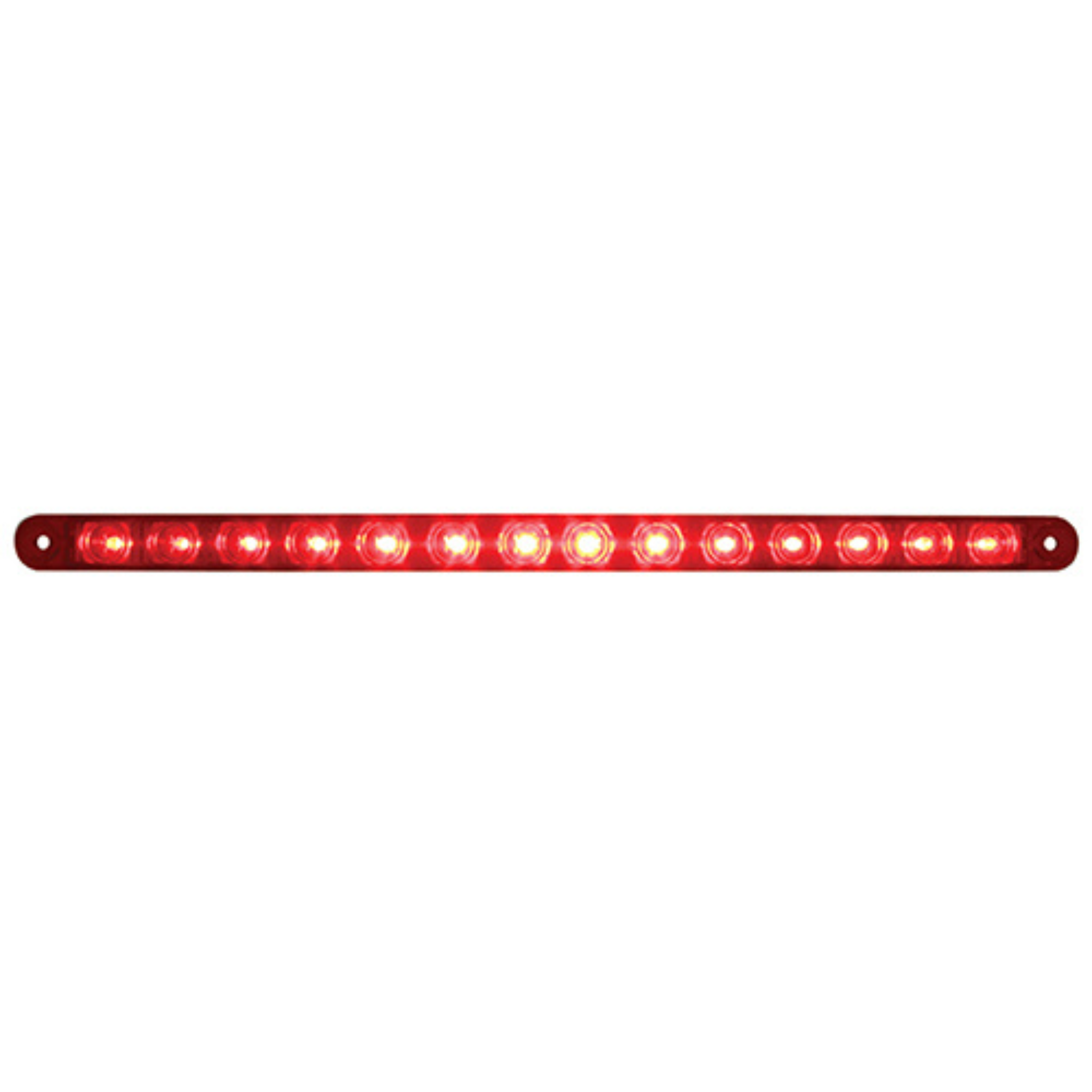

- 38947 – Red LED / Red Lens – Stop, Turn & Tail Light

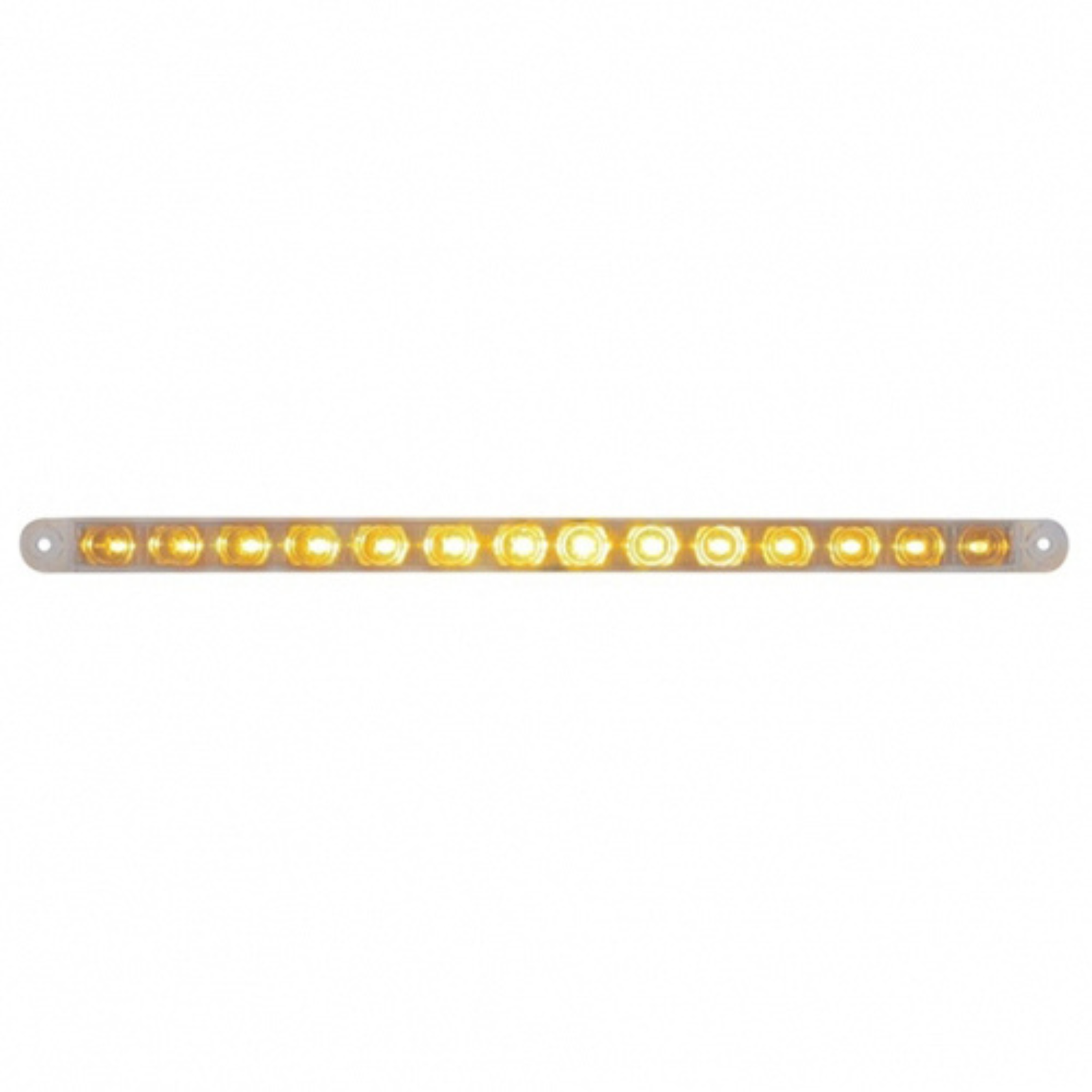

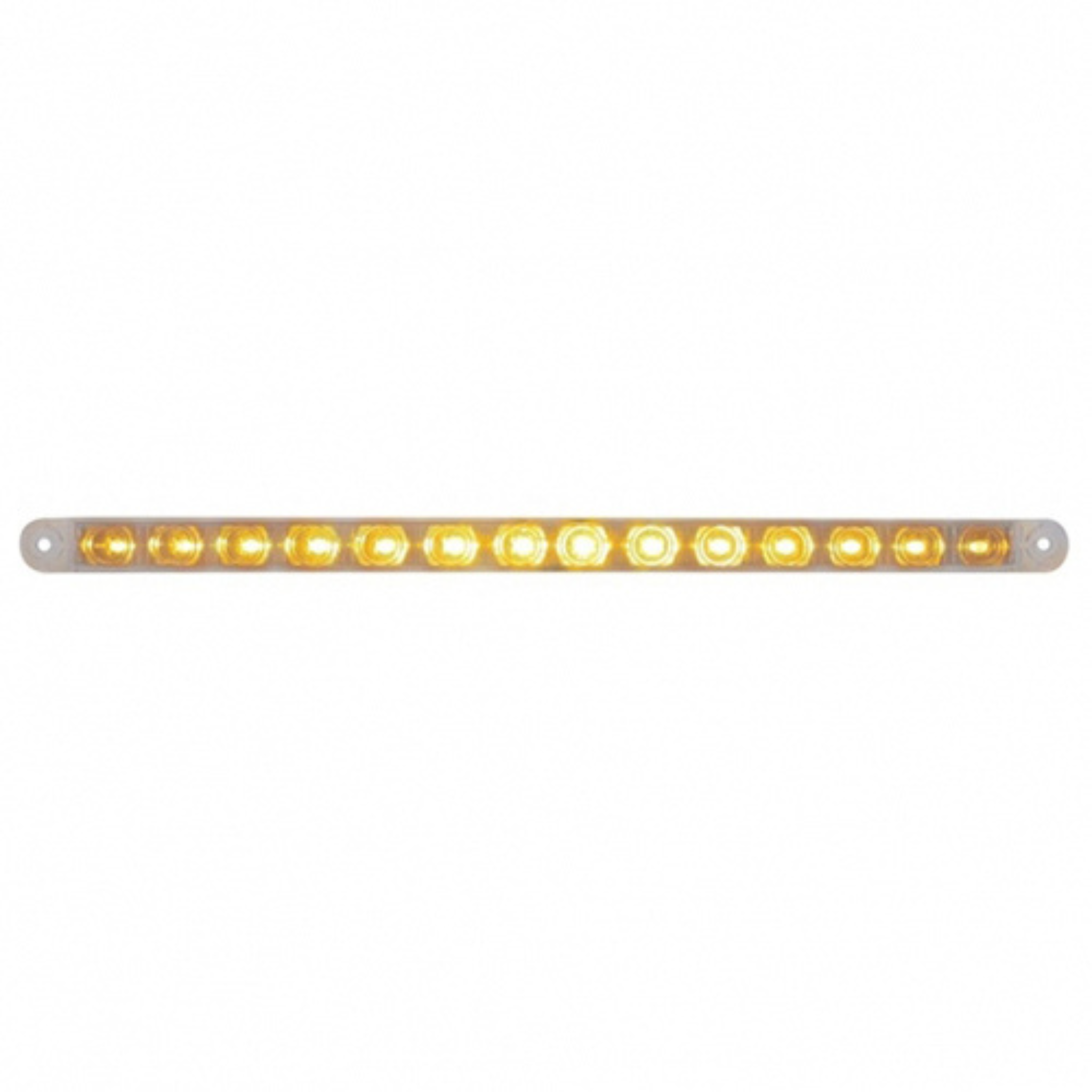

- 38948 – Amber LED / Clear Lens – Turn Signal Light Bar
Performance & Fit
This 12″ LED light bar offers crisp illumination with minimal power draw. Its sealed electronics prevent moisture and corrosion, making it ideal for exterior use on semi-trucks, trailers, or custom lighting setups. The bright LEDs ensure visibility and safety on the road.
Installation
- Mark and drill mounting holes (≈ 11-7/16″ apart).
- Secure light bar using mounting hardware (not included).
- Connect white to ground (–), black to low brightness (+), red to high brightness (+).
- Test functions before final mounting.
Why You’ll Love It
- Bright 14-LED output for maximum visibility
- Epoxy-sealed electronics for long service life
- Weather-resistant polycarbonate lens
- DOT/SAE compliant and easy 3-wire installation
Common Questions
- Is this DOT approved? Yes – DOT/SAE, FMVSS 108 compliant.
- Can it be used as a turn signal? Yes – the amber version (38948) is ideal for signal use.
- Are mounting screws included? No – hardware sold separately.
⚠️ California Proposition 65 Warning:
This product can expose you to chemicals including nickel and chromium compounds known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
Note: Available in red or amber LED configurations. Sold individually.
