Grand General – 3″ Watermelon Double Face High Power LED Pedestal Light Amber/Red

3″ Watermelon Double Face High Power LED Pedestal Light

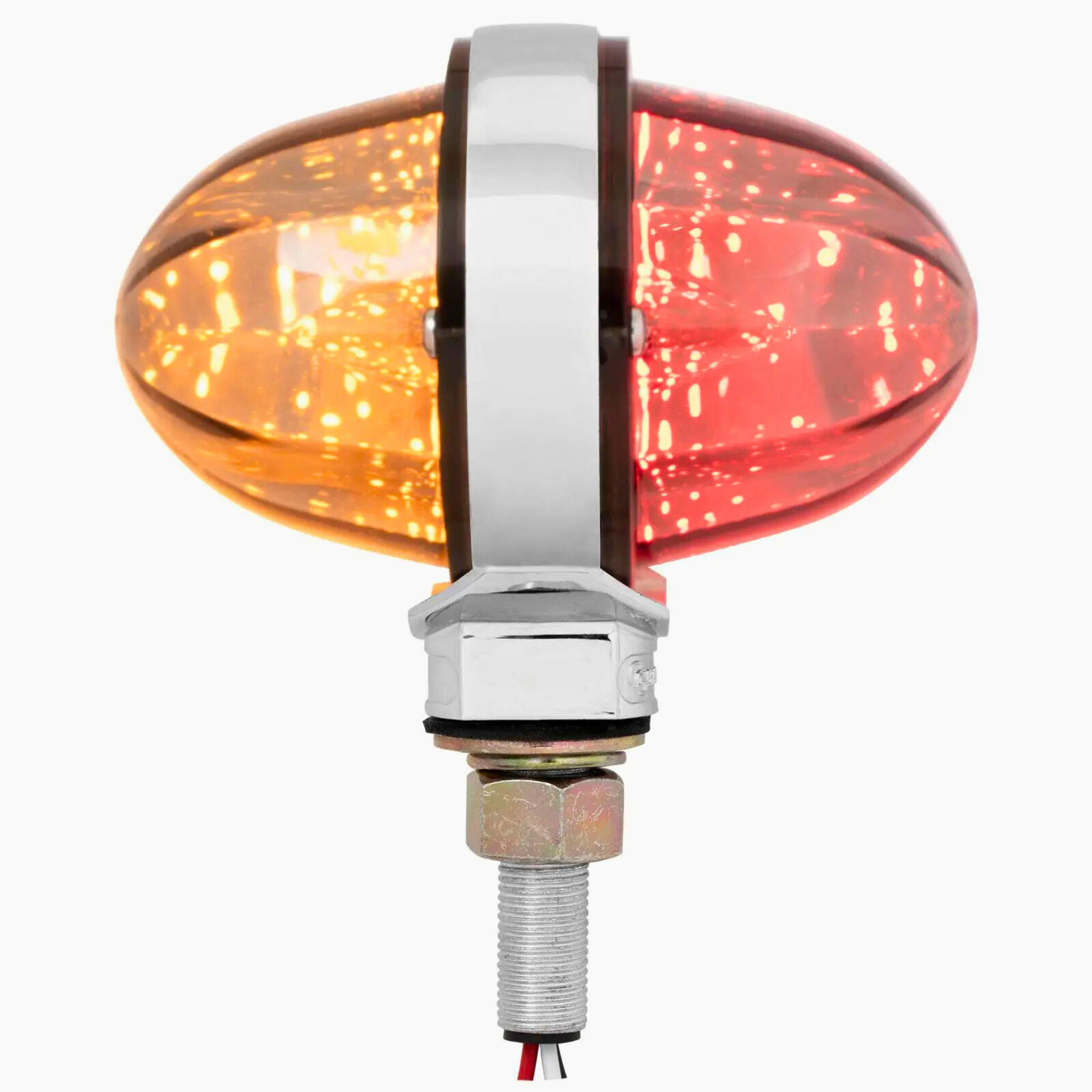

The Grand General 3″ Watermelon Double Face High Power LED Pedestal Light combines vintage-inspired styling with modern LED performance. Each side features 18 high-power LEDs sealed in a durable polycarbonate lens and housed in a chrome die-cast body. Designed for 12V systems, this double-faced pedestal light delivers superior visibility and style for trucks and trailers.

• Manufacturer: Grand General
• Item Numbers / SKUs: 75197 (Amber/Red), 75198 (Clear Amber/Red), 75199 (Smoke Amber/Red)
• Voltage: 12V DC
• LED Count: 18 high-power LEDs per side

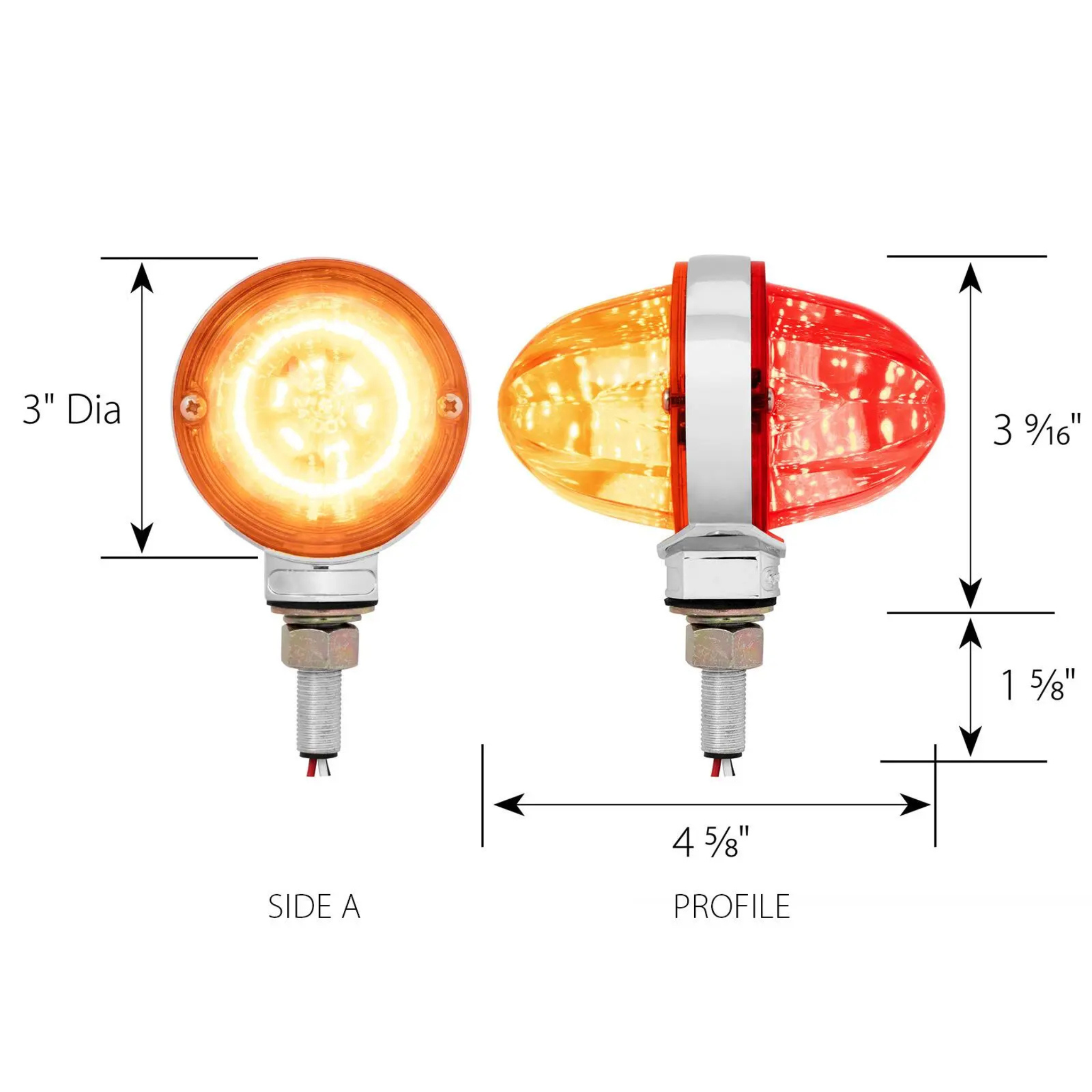

• Size: 3″ Diameter × 4-5/8″ Depth × 3-9/16″ Height
• Stud Size: 1/2″ Diameter × 1-5/8″ Length
• Material: Chrome die-cast housing with sealed polycarbonate lens and reflector
• Design: Double-faced pedestal light for dual-direction visibility
• Installation: 3-wire hardwired setup with included mounting hardware
• Mounting: Stud mount with lock nut for secure installation

Performance & Fit

This 3″ Watermelon LED light merges the classic rounded “watermelon” design with modern LED illumination. The sealed lens ensures resistance to moisture, dust, and vibration, while the chrome housing offers corrosion protection and a show-quality shine. With 18 LEDs per side, it provides brilliant amber and red lighting for marker, turn, or stop applications.

Installation

1. Disconnect vehicle power before beginning installation.
2. Mount the light using the integrated 1/2″ stud and secure with the provided nut.
3. Connect wires: typically white (ground), black (marker), and red (turn or stop function).
4. Test all light functions to ensure proper operation before tightening completely.

Why You’ll Love It

• 18 high-power LEDs per side for strong, even illumination
• Classic “watermelon” shape with modern double-face LED performance
• Chrome die-cast housing and sealed polycarbonate lens for long-lasting durability
• Perfect for trucks, trailers, and custom rigs seeking retro-inspired styling
• Easy stud-mount installation with included hardware

Color Options

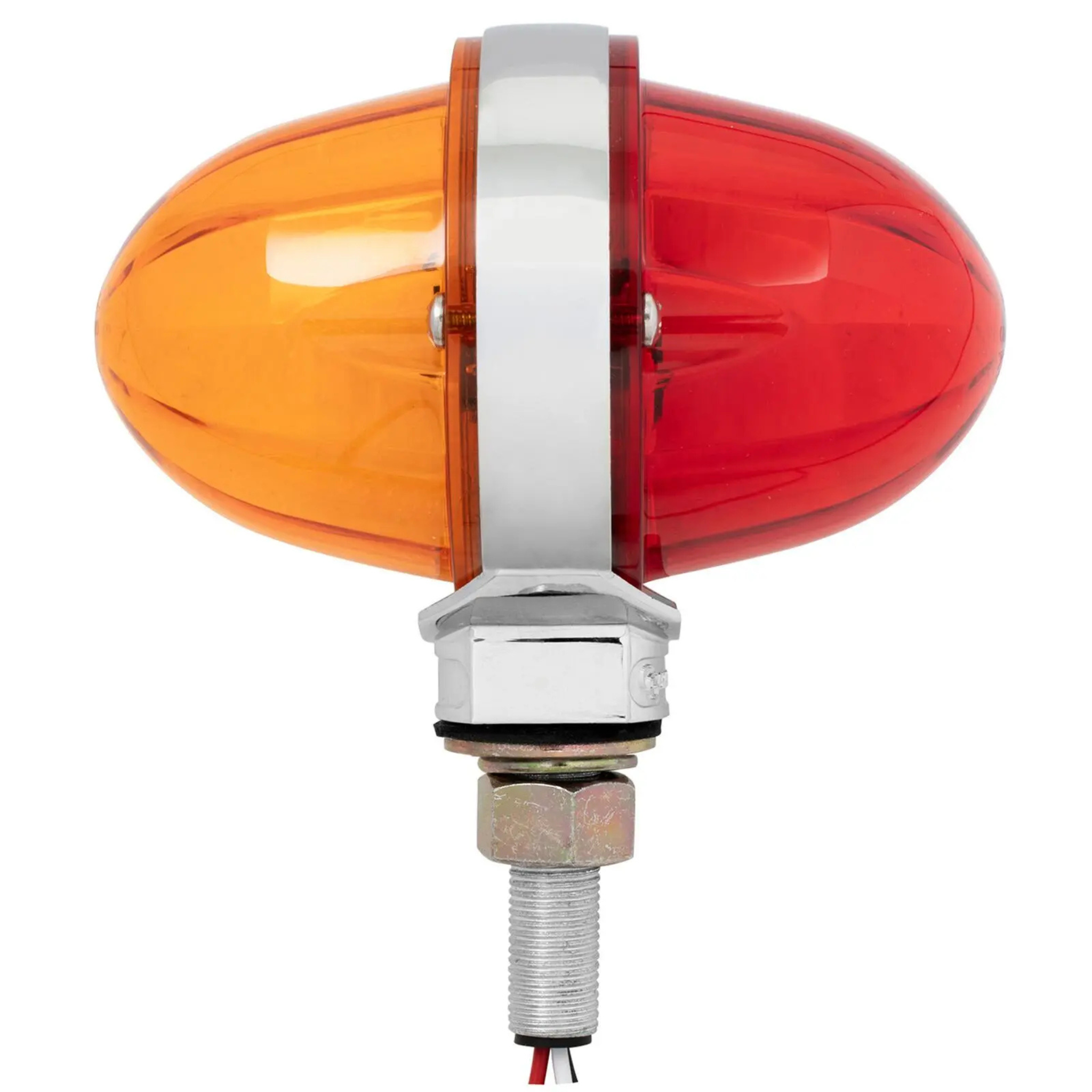

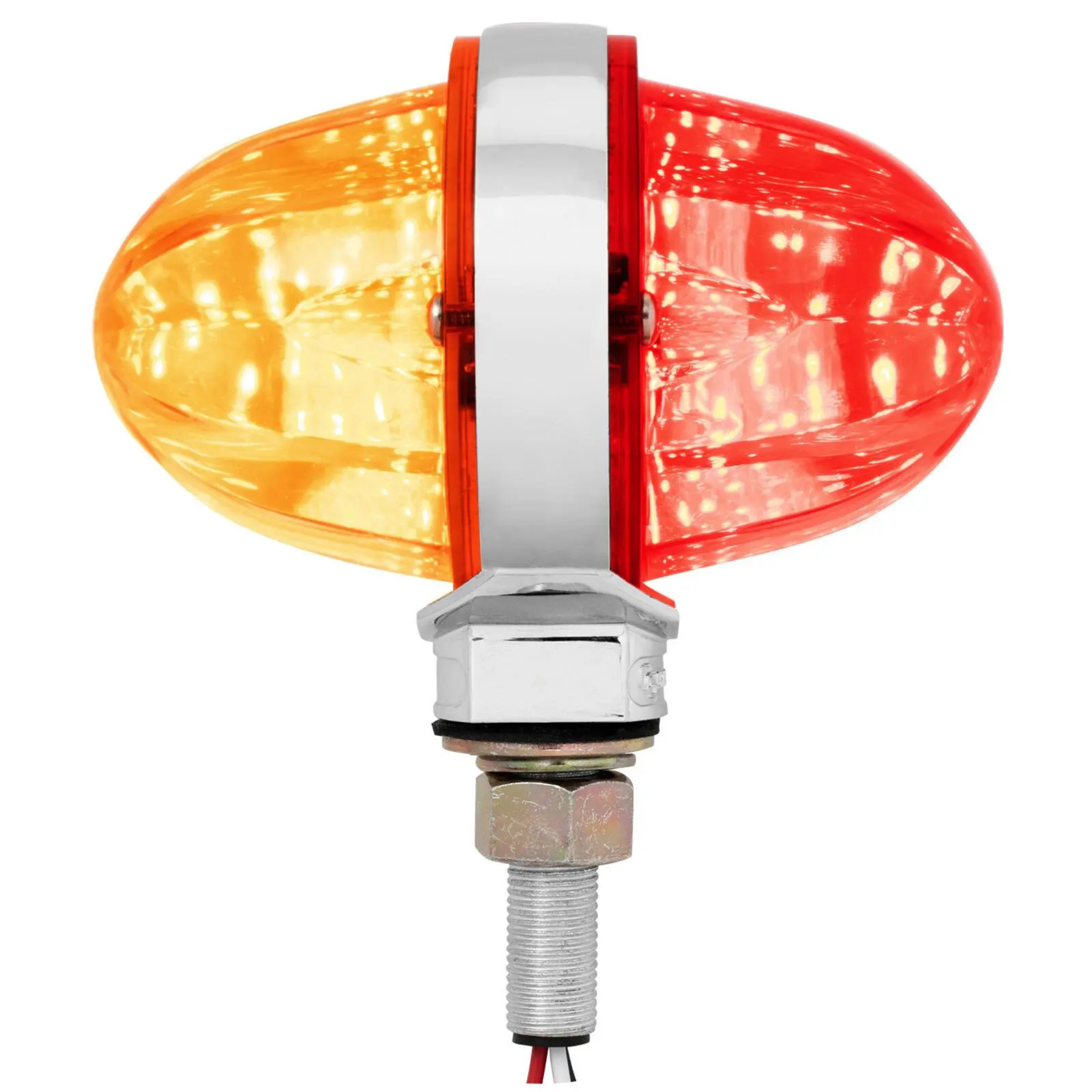

• 75197: Amber front / Red rear

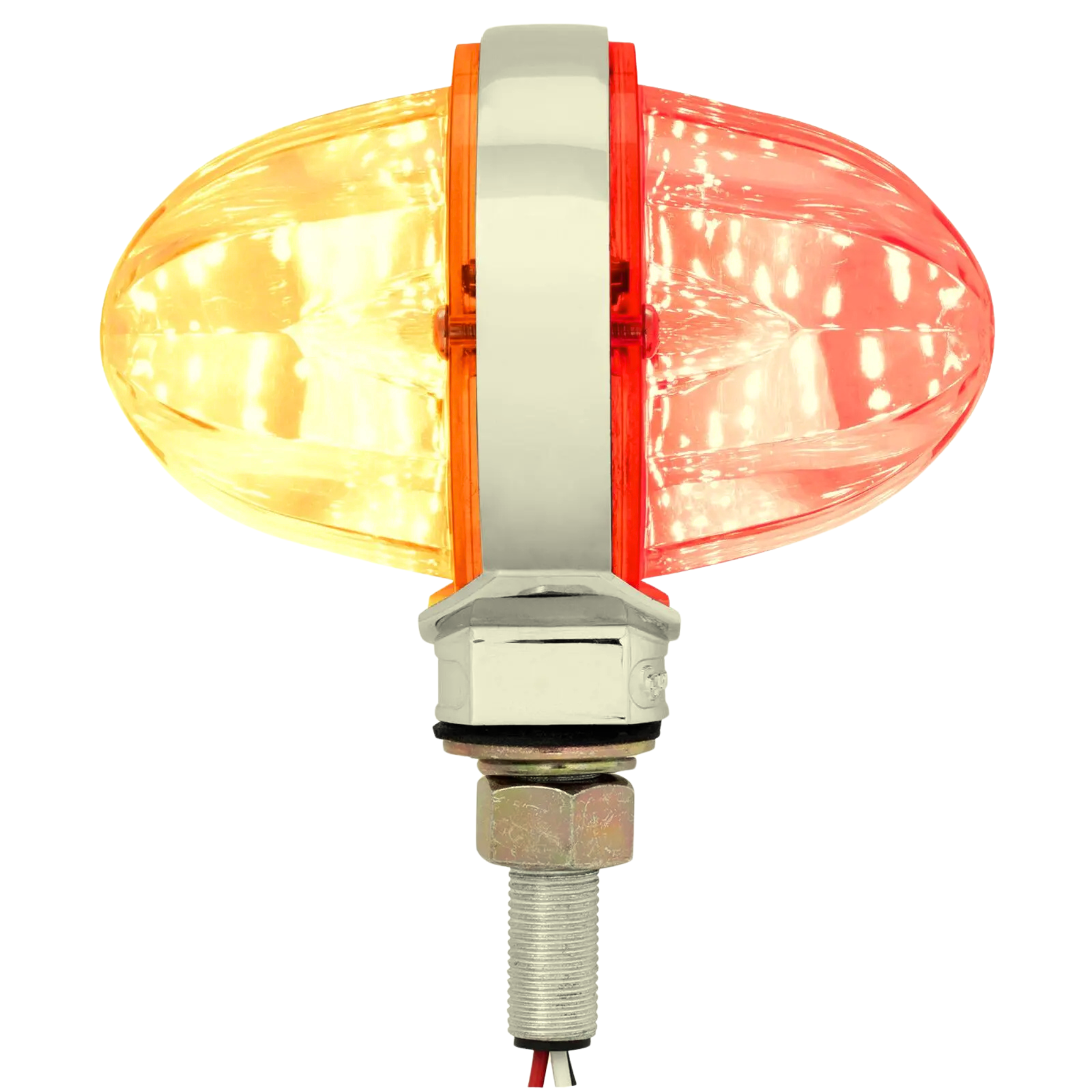

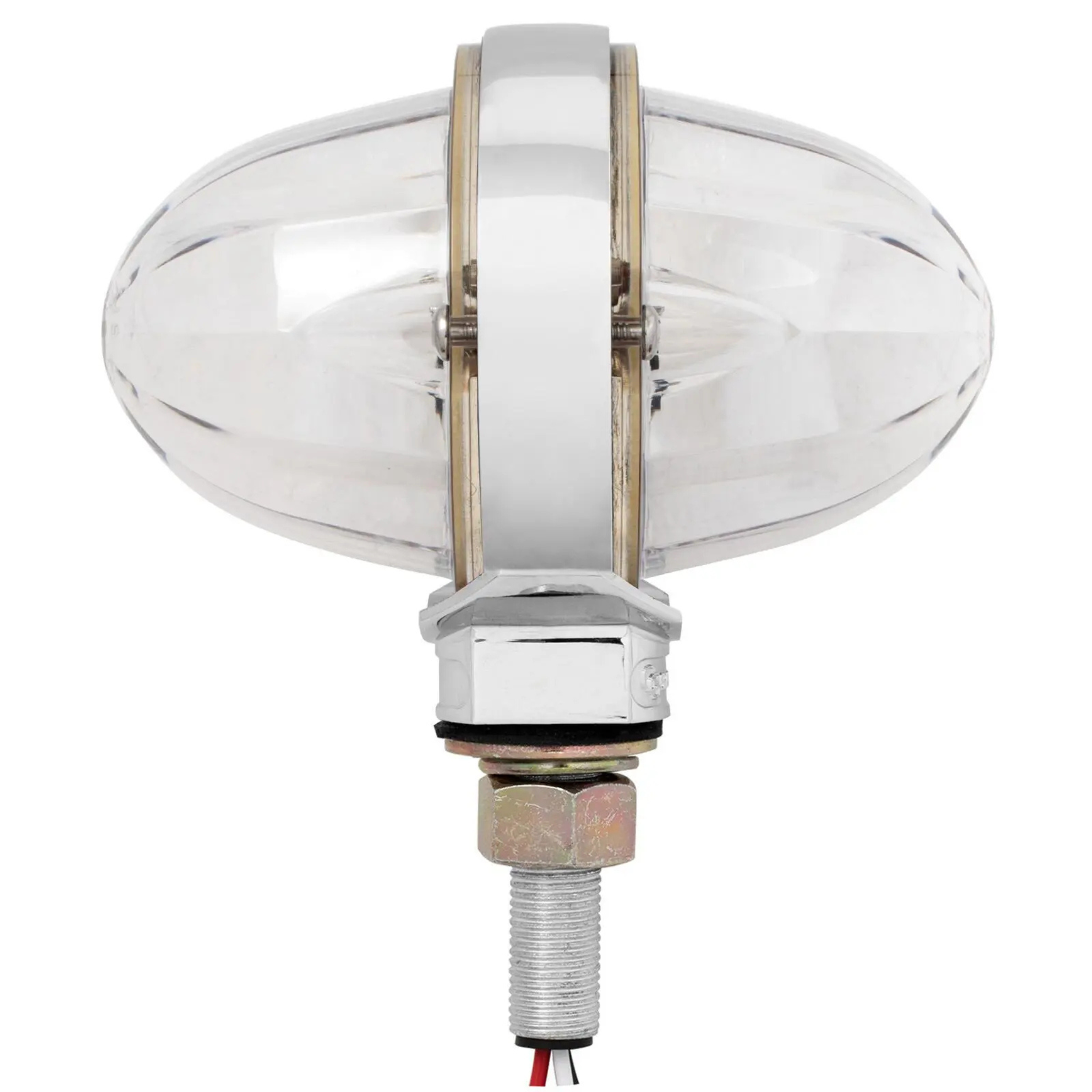

• 75198: Clear lens - Amber front / Red rear

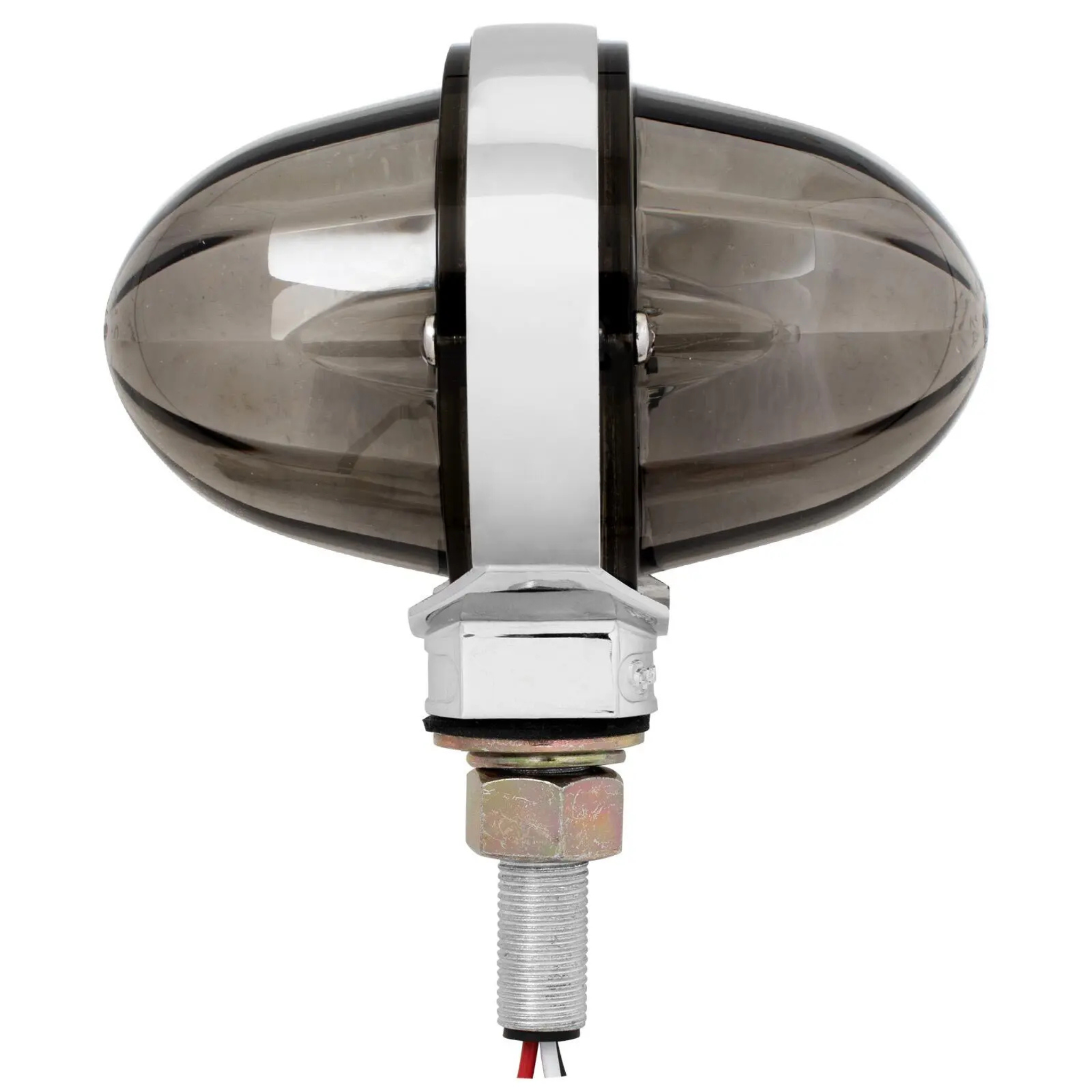

• 75199: Smoke lens - Amber front / Red rear

Common Questions

• Are both sides illuminated? Yes — both faces include 18 LEDs for dual-direction visibility.
• Can this light serve as a turn or stop light? Yes — the 3-wire setup supports marker and signal functions.
• Is the light weatherproof? Yes — it is sonically sealed and fully resistant to water and vibration.
• What’s included? Each light includes the mounting stud, nut, and integrated wiring leads.

⚠️ California Proposition 65 Warning:This product can expose you to chemicals including lead and lead compounds, known to the State of California to cause cancer and reproductive harm.For more information, visit www.P65Warnings.ca.gov.

Note: Available in three configurations — Amber/Red (75197), Clear Amber/Red (75198), and Smoke Amber/Red (75199). Each version features 18 LEDs per side and a chrome die-cast housing for a premium finish.
