United Pacific – 19 LED 4″ Round Double Fury Light – 35950
19 LED 4″ Round Double Fury Light (Stop & Turn) – Red & White LED/Clear Lens (35950)
Experience powerful illumination and versatility with the United Pacific – 19 LED 4″ Round Double Fury Light. Designed for stop and turn functions, this dual-color light features both red and white LEDs housed behind a clear polycarbonate lens. The Double Fury series provides intense brightness and a premium finish that meets both performance and style demands for modern trucks and trailers.
Product Features
- Manufacturer: United Pacific
- Item Number: 35950
- Light Type: 19 LED round stop & turn light (Double Fury dual-color)

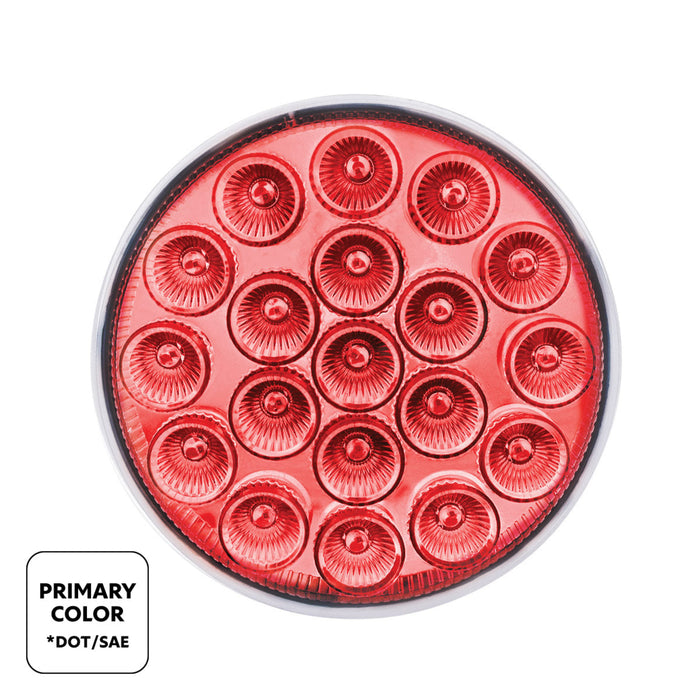

- Primary LED Color: Red

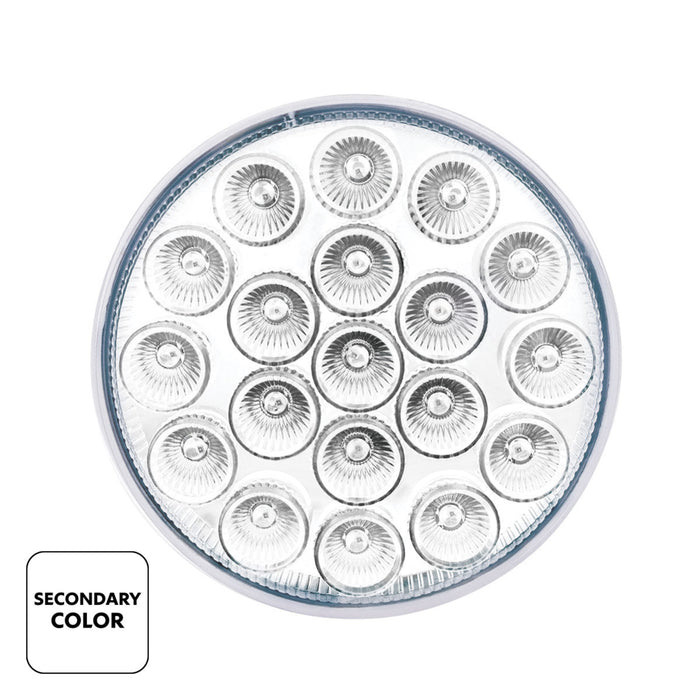

- Secondary LED Color: White (auxiliary override)
- Lens: High-quality injection-molded polycarbonate, clear

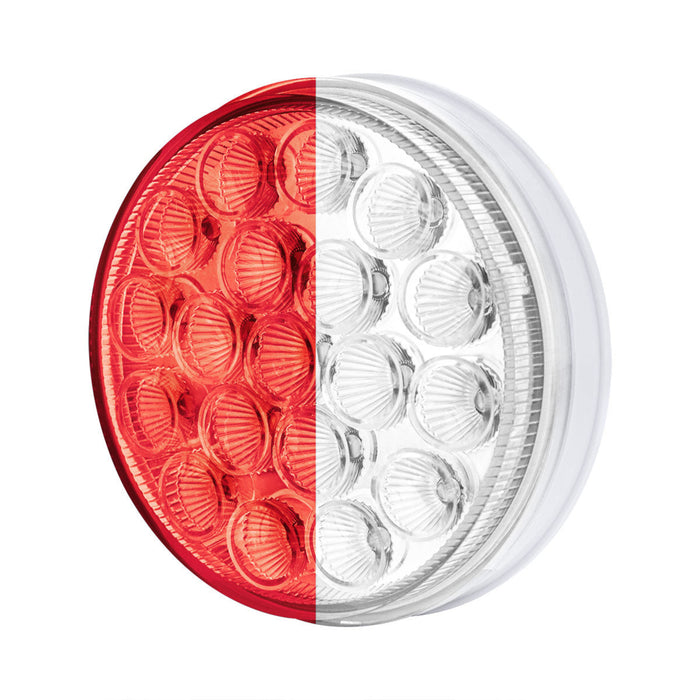

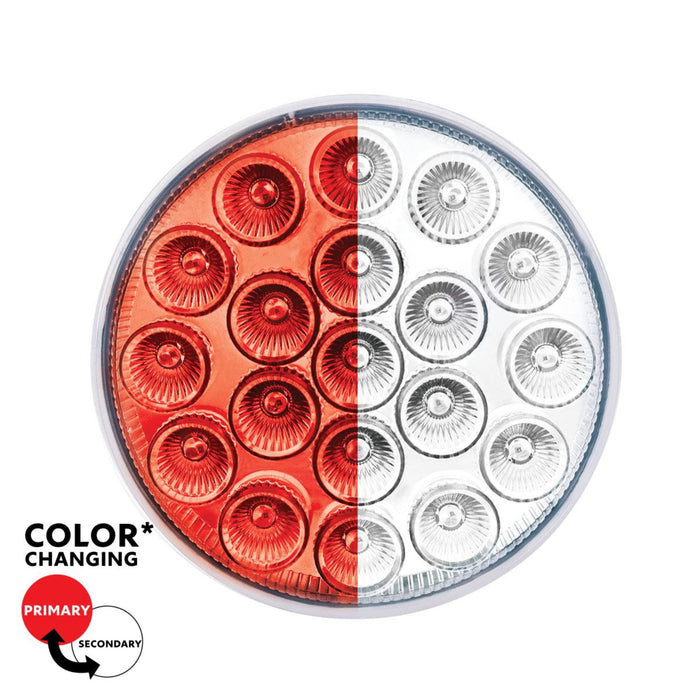

- Function: Dual color – primary for stop/turn, secondary for auxiliary use
- Voltage: 12V DC electronics, fully sealed for moisture resistance

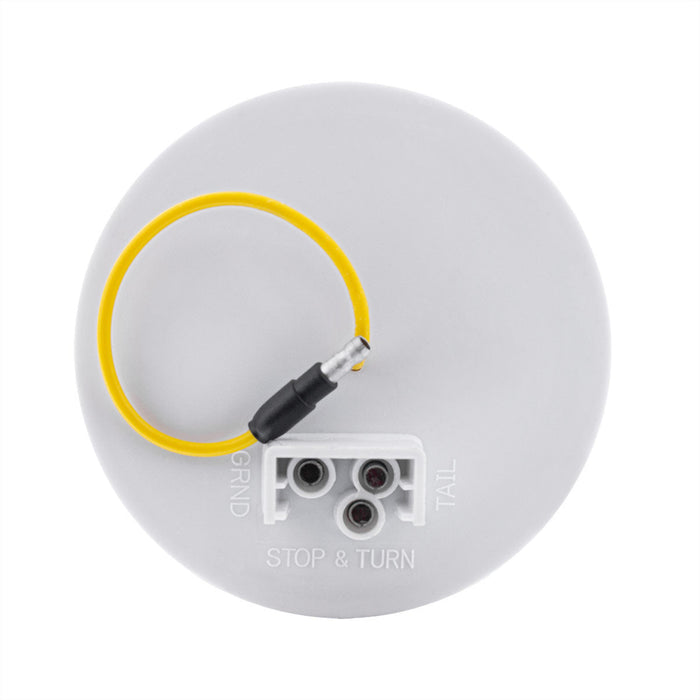

- Connection: 3-contact female plug + additional yellow wire for secondary color activation
- Recommended Plug: Item #34212P or #34216P (sold separately)
- Recommended Mount: 4″ rubber push-in grommet #31515P10 (sold separately)
- Compliance: DOT/SAE, FMVSS108 approved
- Water Resistance: IP67 rated for complete weather protection
- Sold individually
Performance & Fit
The 19-LED Double Fury light combines dual-color versatility with a compact, durable design. When the secondary function is activated, the white LEDs override the red output, making it ideal for multi-function signaling or auxiliary use. Its sealed housing protects against dust, moisture, and vibration, ensuring consistent performance on and off the highway.
Installation
- Insert the light into a 4″ rubber push-in grommet (item #31515P10, sold separately).
- Connect the 3-pin plug (#34212P or #34216P) to your wiring harness.
- Connect the additional yellow wire to your auxiliary or override signal circuit.
- Test all light functions before final mounting.
Why You’ll Love It
- Dual-color LED output for maximum functionality
- Sealed 12V DC circuitry resists moisture and corrosion
- Bright 19-LED array provides superior visibility
- Clear lens enhances light projection and modern appearance
- DOT/SAE compliant for legal road use
Common Questions
- Is it DOT approved? Yes, DOT/SAE, FMVSS108 compliant for stop/turn use.
- Does the white light work at the same time as red? No – the white LEDs override the red output when activated.
- What plug do I need? Use 3-pin plug #34212P or #34216P (sold separately).
- Is it waterproof? Yes, IP67 rated for full weather resistance.
⚠️ California Proposition 65 Warning:
This product can expose you to chemicals including nickel and chromium compounds which are known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
Note: Secondary white LED function is for auxiliary use only and overrides red light when active. Recommended accessories: 3-pin plug #34212P / #34216P and 4″ grommet #31515P10 (both sold separately).
