United Pacific – 12 LED 6″ Oval Reflector Light (Stop, Turn & Tail)

12 LED 6″ Oval Reflector Light (Stop, Turn & Tail)

The United Pacific 12 LED 6″ Oval Reflector Light delivers exceptional brightness and durability for stop, turn, and tail applications. Its chrome inner reflectors and sealed polycarbonate lens provide long-lasting performance while meeting DOT standards for on-road use.

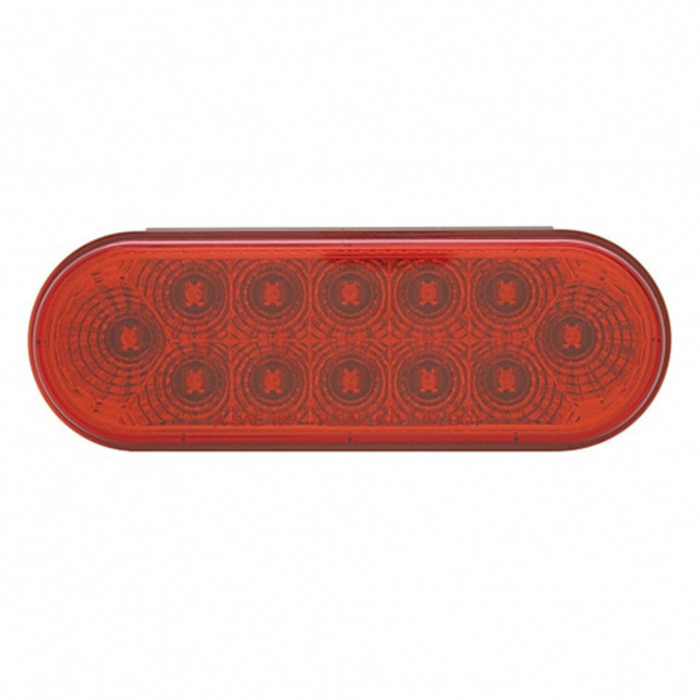

• 38121 – Red LED / Red Lens

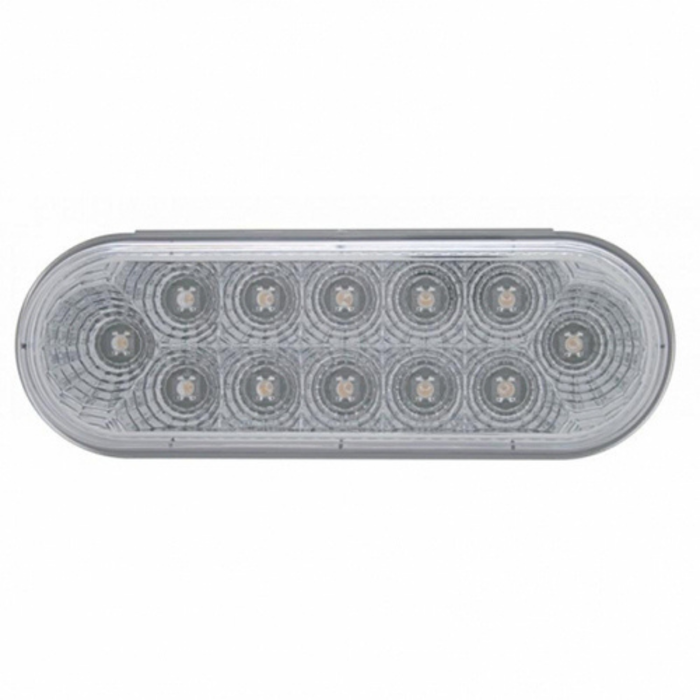

• 38122 – Red LED / Clear Lens

Product Features

• Manufacturer: United Pacific
• Item Numbers: 38121 / 38122
• LED Count: 12 bright red LEDs
• Lens Options: Red or Clear polycarbonate lens
• Reflector: Chrome inner reflector for maximum brightness
• Housing: Rear plastic body with sealed lens to prevent moisture intrusion
• Voltage: 12 V DC solid-state circuit board
• Connection: 3-pin female contact terminal
• Recommended Plug: 3-pin male plug #34212 or #34216 (not included)
• Recommended Mount: Rubber push-in grommet #31506 (not included)
• Compliance: DOT/SAE FMVSS 108 approved
• Water Resistance: IP67 rated for dust and moisture protection
• Sold individually

Performance & Fit

This light combines powerful illumination with a reflective inner housing to enhance visibility in any condition. The sealed polycarbonate lens resists vibration and road spray, ensuring long-term performance for trucks, trailers, and custom rigs. Standard 6″ oval design fits most DOT-approved mounts.

Installation

1. Insert the light into a rubber grommet mount (#31506 recommended).
2. Connect the 3-pin female terminal to a matching male plug (#34212 or #34216).
3. Wire colors: White = Ground (–), Black = Tail/Running, Red = Stop/Turn.
4. Test illumination before final installation.

Why You’ll Love It

• 12 bright red LEDs for clear Stop/Turn/Tail performance
• Sealed lens and housing for moisture and dust protection
• Chrome reflector enhances brightness and visibility
• Plug-and-play installation with 3-pin connector
• DOT/SAE FMVSS 108 compliant and IP67 rated

Common Questions

• Does it fit standard 6″ oval mounts? Yes – fits most standard DOT mount grommets.
• Is it waterproof? Yes – IP67 rating protects against dust and moisture.
• Does it include a plug or grommet? No – sold separately (#34212, #34216, #31506).
• Is it DOT approved? Yes – fully DOT/SAE FMVSS 108 compliant for road use.

⚠️ California Proposition 65 Warning:
This product can expose you to chemicals including nickel and chromium compounds which are known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.

Note: Choose Red Lens (38121) or Clear Lens (38122). Sold individually. Use with recommended plug and mount for best fit and performance.
