Grand General – 3 Parallel Primary Wire Roll – 16 G – 100′ – 55307

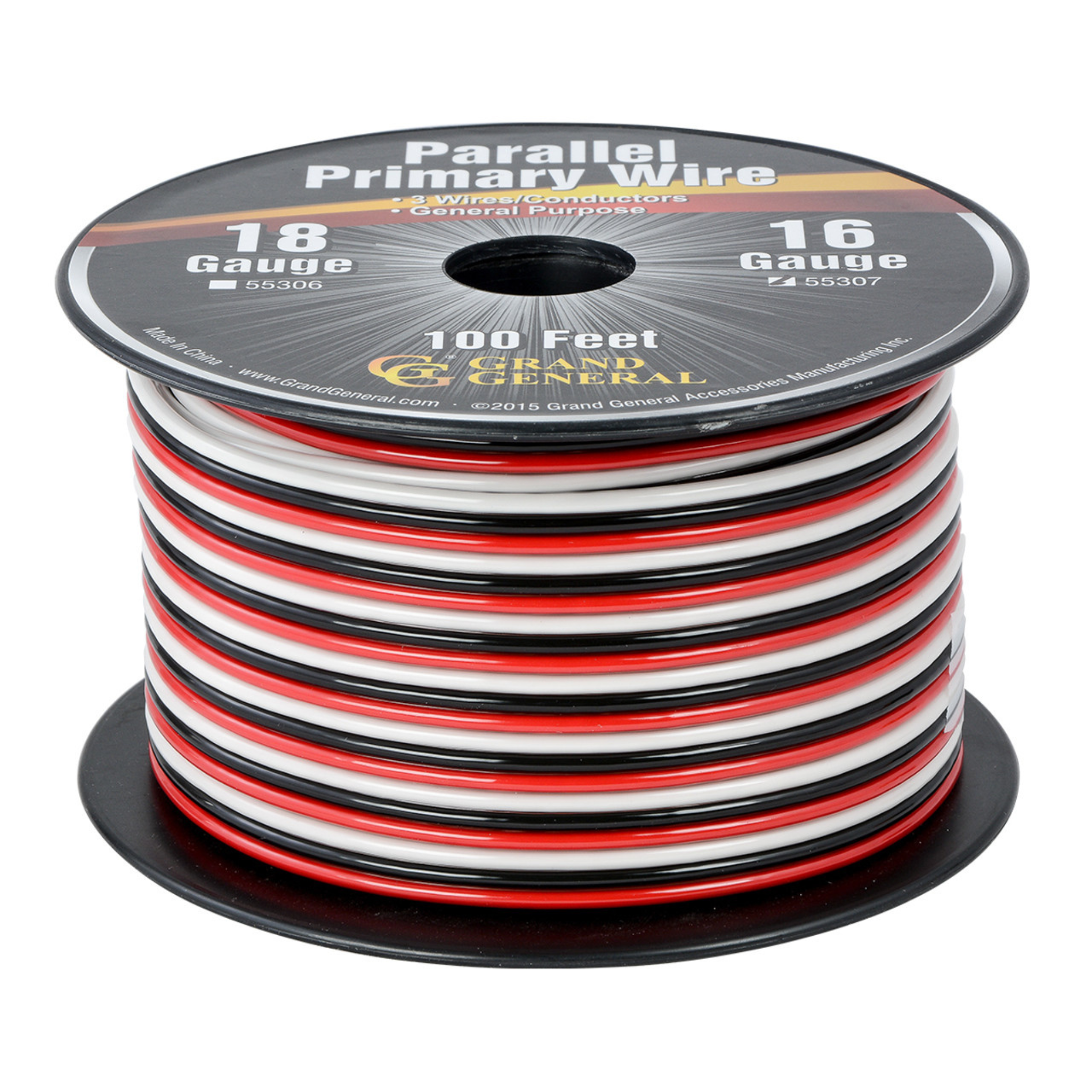

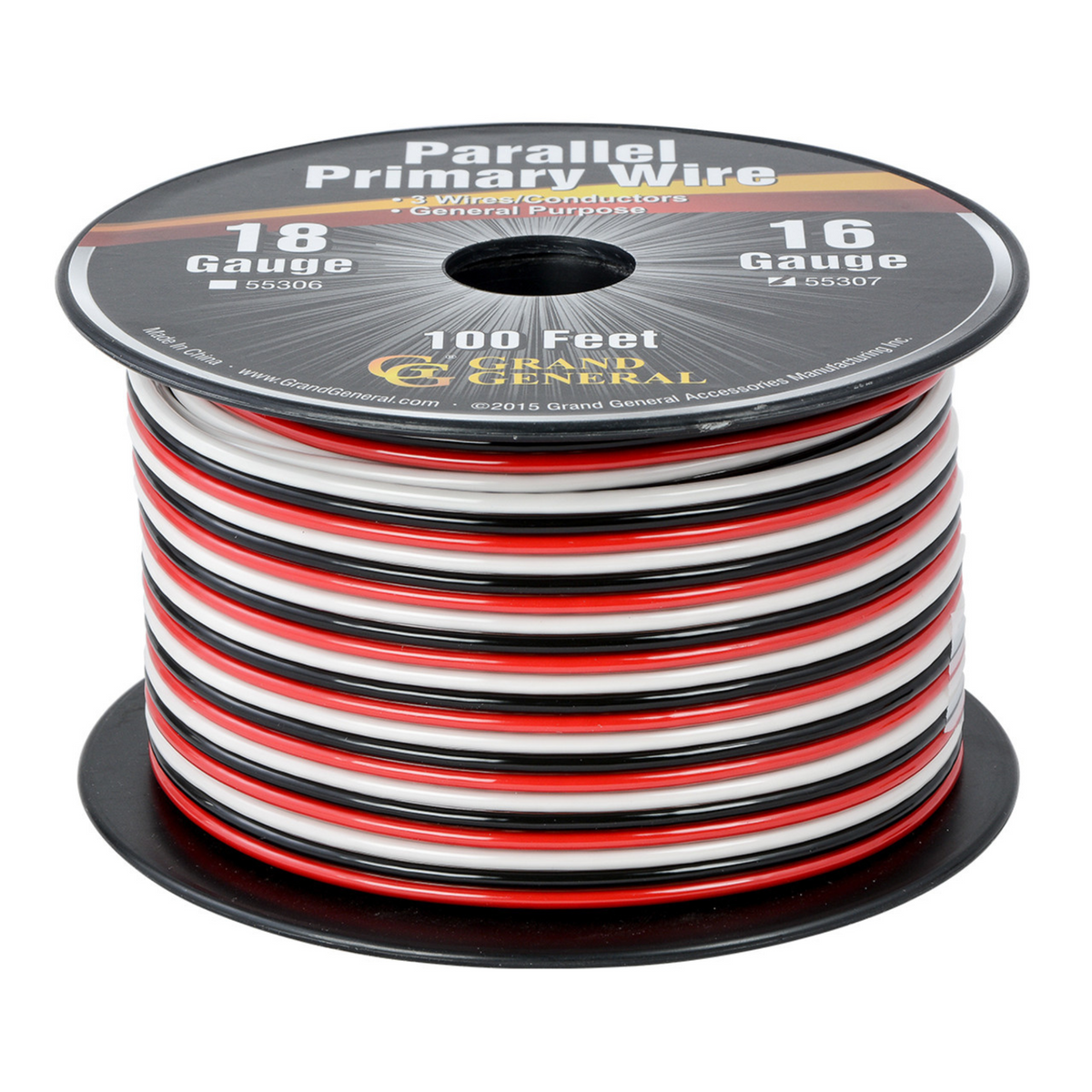

3 Parallel Primary Wire Roll – 16 Gauge (100′)

The Grand General 3 Parallel Primary Wire Roll (55307) provides dependable, high-quality electrical wiring for automotive, trailer, and lighting systems. This triple-conductor wire uses UL-listed 16-gauge copper strands encased in a bonded PVC jacket for maximum flexibility, durability, and protection. Perfect for multi-circuit lighting or auxiliary installations where organized, color-coded wiring is essential.

• Manufacturer: Grand General
• Item Number: 55307
• Gauge: 16 AWG (3 conductors)
• Length: 100 ft roll
• Material: UL Listed copper wire with flexible PVC insulation
• Design: 3 parallel bonded conductors in a single flat jacket
• Voltage Rating: Up to 60 V DC
• Temperature Range: −40 °F to 176 °F (−40 °C to 80 °C)
• Color Coding: Standard black, white, and red conductors for easy polarity identification
• Unit: Sold by roll

Performance & Fit

This 3-conductor wire configuration keeps circuits neat and organized while simplifying installation. The bonded PVC jacket resists oil, heat, and abrasion, making it ideal for automotive lighting, trailer harness wiring, and 12 V accessory systems. It delivers excellent current conductivity and flexibility for tight routing spaces.

Installation

1. Measure and cut wire to required length.
2. Separate and strip each conductor end as needed.
3. Crimp or solder terminals for secure connections.
4. Route and secure wire using loom or clips to avoid abrasion.

Why You’ll Love It

• Three 16-gauge conductors in a bonded parallel layout
• UL-listed copper wires for reliable conductivity
• Flexible PVC insulation resists oil, moisture, and heat
• Ideal for multi-circuit automotive and trailer applications
• Sold in a 100′ roll for convenient use and storage

Common Questions

• Is this wire UL Listed? Yes — it meets UL standards for automotive wiring.
• What voltage is it rated for? Up to 60 V DC in 12/24 V systems.
• How many conductors does it have? Three parallel conductors.
• Is it sold by roll? Yes — each 55307 unit is a 100′ roll.

⚠️ California Proposition 65 Warning:This product can expose you to chemicals including lead and other compounds, known to the State of California to cause cancer and reproductive harm.For more information, visit www.P65Warnings.ca.gov.

Note: Grand General 55307 3 Parallel Primary Wire Roll, 16 AWG UL-listed copper wire with bonded PVC insulation. 100′ length. Sold by roll.
