United Pacific - W900 High Power LED Chrome Projection Headlight (SPECIAL ORDER)
High Power LED Chrome Projection Headlight with LED Turn Signal and Position Light Bar Passenger Side
Special Order Item: This product is a special order item. Processing time may vary and the item may not be eligible for cancellation or return once the order is placed.

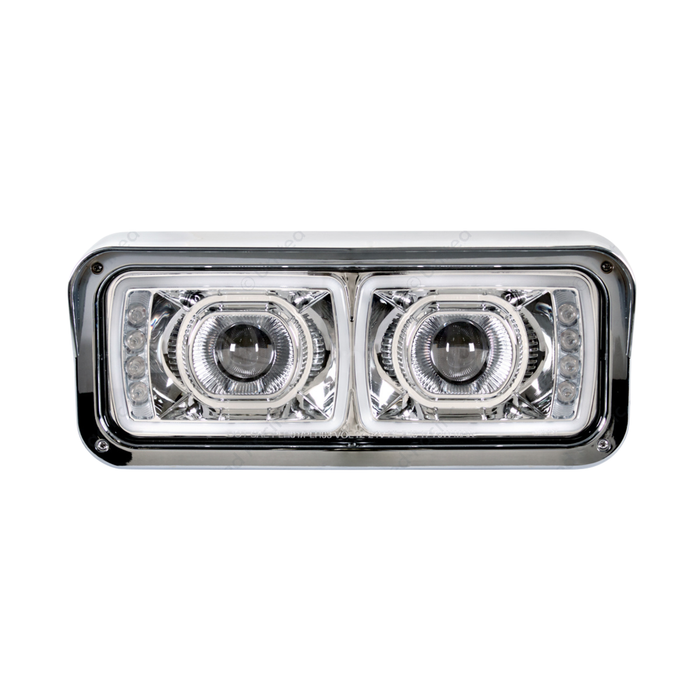

The United Pacific High Power LED Chrome Projection Headlight is a premium all LED replacement headlight designed for maximum visibility, durability, and modern styling. This passenger side headlight features dual function low and high beam operation, an integrated LED turn signal, and a position light bar.
Built with a chrome inner housing and supplied with an all new durable fender liner, this headlight helps protect the rear housing from water, road salt, and debris. The main headlight plugs directly into the factory wiring harness, while the position light and turn signal require additional wiring.
Product Features
- Manufacturer: United Pacific
- Item Number: 31155
- Order Type: Special Order
- Side: Passenger side
- Light Type: All LED projection headlight
- Beam Functions: Low beam and high beam
- Additional Lighting: LED turn signal and position light bar
- Housing Finish: Chrome inner housing
- Voltage: 12 to 24V DC
- Total Power Consumption: 5.80 amps at 12V DC
- Compliance: DOT SAE FMVSS 108
Light Output & Electrical
- Low Beam: 1,500 lumens, 1.5 amps
- High Beam: 2,100 lumens, 2.3 amps
Vehicle Compatibility
- Peterbilt 357, 365, 378, 379 with OE dual 4 inch x 6 inch headlight housing
- Kenworth T600, T800, W900 with fender mounted headlights
- Freightliner Classic
- Western Star 4800, 4900, 6900 series
Performance & Fit
This dual 4 inch x 6 inch LED headlight assembly delivers strong, focused light output for improved nighttime visibility. The included fender liner adds protection to extend service life in demanding road conditions.
Installation
- Remove the existing headlight assembly.
- Install the new headlight into the factory mounting location.
- Plug the headlight into the existing wiring harness.
- Wire the position light and turn signal as required.
- Test all lighting functions before use.
Package Dimensions
- 18 in L x 11.5 in W x 9.5 in H
Why You’ll Love It
- All LED low and high beam performance
- Integrated turn signal and position light bar
- Chrome inner housing for a clean appearance
- Includes protective fender liner
- Designed for heavy duty truck applications
Common Questions
- Is this a special order item? Yes, this headlight is a special order item and may require additional processing time.

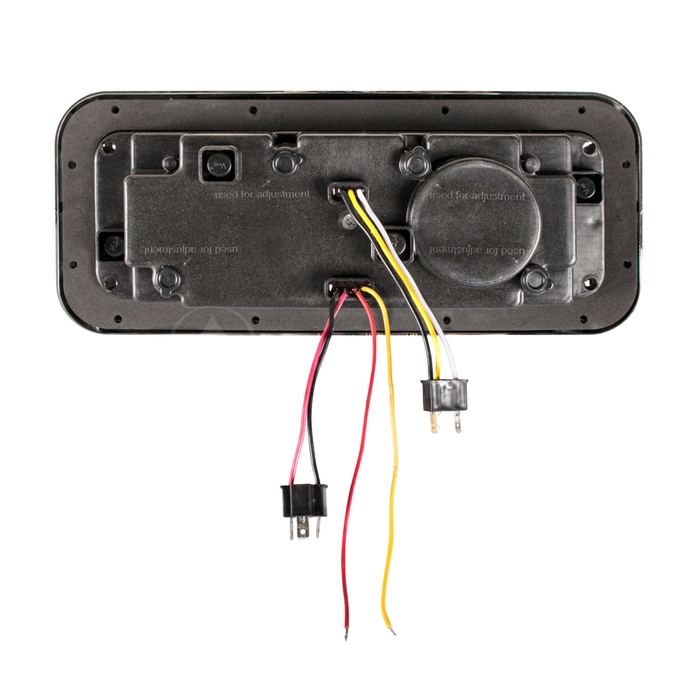

- Is this headlight plug and play? The main headlight plugs into the factory harness. The position light and turn signal require additional wiring.
- Is this sold as a set? No, this listing is for the passenger side headlight only.
